3550r/Min Auto Finger Joint Assembler MHZ1540 MHZ1560 Model
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | ISO, CE |
| Model Number: | MHZ1540 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | within 15 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 200sets per month |
|
Detail Information |
|||
| Item: | Finger Joint Assembler | Power: | 380V/50Hz |
|---|---|---|---|
| High Light: | 3550r/Min finger joint assembler,MHZ1540 finger joint assembler,MHZ1560 finger joint assembler |
||
Product Description

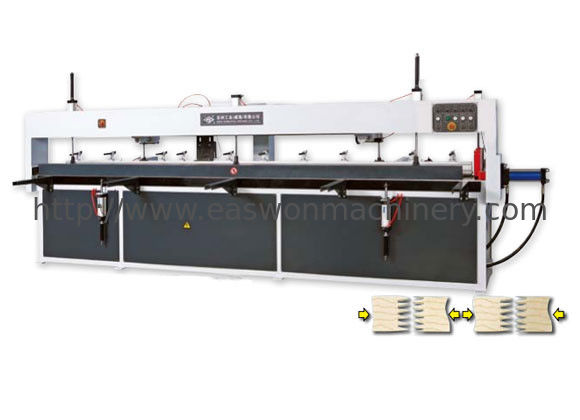

MHZ1540 MHZ1560 Auto Finger Joint Assembler
| MHZ1540 | MHZ1560 | ||
| Max. jointing length | mm | 4000 | 6200 |
| Max. jointing width | mm | 130 | 130 |
| Max. jointing thickness | mm | 75 | 75 |
| Max. jointing force | kg.f | 6000 | 6000 |
| Sawblade dia. | mm | Ø305 | Ø305 |
| Spindle speed | r/min | 3550 | 3550 |
| Sawing motor power | kW | 2.2 | 2.2 |
| Hydraulic pump motor power | kW | 3 | 3 |
| Air pressure | MPa | 0.6- 0.8 | 0.6- 0.8 |
| Hydraulic rated pressure | MPa | 10 | 10 |
| Power | V/Hz | 380/50 | 380/50 |
| Overall dimensions | mm | 6021×1253×1490 | 8021×1253×1490 |
| Net.weight | kg | 2000 | 2160 |
