Double Sides Finger Joint Shaper 16Mpa T80mm Door Frame Press Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | ISO |
| Model Number: | BHF2-2500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | plastic film |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | BHF2-2500 | Max.working Length: | 2500mm |
|---|---|---|---|
| Max. Working Width: | 1000mm | Max. Working Thickness: | 80mm |
| Rated Pressure: | 16Mpa | Power: | 3kw |
| Usage: | Jointing Windows And Door Frame | Conditon: | New |
| Warranty: | 1 Year | ||
| High Light: | T80mm Finger Joint Shaper,16Mpa Finger Joint Shaper,T80mm door frame press machine |
||
Product Description

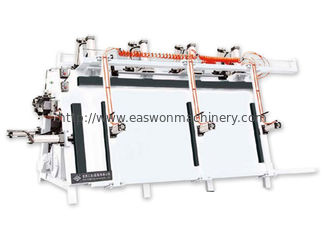

WinBHF2-2500 Window&Door Frame press
double sides woodworking window & door frame press machine
Window&Door frame press is used for jointing windows and door frame, it can joint various size frame(max. size 1000x2500mm), The window&Door frame press are controlled by foot switch, one worker can do all work easily.
Windows&Door frame press specification:
| Technical specification | Unit | BHF2-2500 |
| Number of working face | 2 | |
| Max. working length | mm | 2500 |
| Max. working width | mm | 1000 |
| Max. working thickness | mm | 80 |
| Rated pressure | Mpa | 16 |
| Rated penumatic pressure | Mpa | 0.6 |
| Total electrical connection | kw | 3 |
| Overall dimension | mm | 3600x2200x1950 |
| Net weight | kg | 1700 |
Window & Door frame press features:
1, Double-side window&door frame press machine adopts hydraulic principle, the running speed is stable, the pressure is large and even.
2, The hydraulic press system is equipped with a pressure maintaining device, continuous pressure can ensure the gluing quality of window&door.
3, Four working faces, can be used for continuous operation, enhance work efficiency.
4, Using hydraulic brake positioning mechanism, and equipped with hydraulic lock and safety bracket to ensure safe and reliable when operating.
Window & door frame press details:
|
|
| High pressure oil pipe with pressure indicator ot prevent improper operation and damage to the machine. | Hydraulic station,3kw motor, pure copper motor is durable |
|
|
| The cylinder throttle value adjusts the speed of cylinders, each of which can be operated separately, and can be turned off when not in use | Advanced technology, high precision, no oil leakage, free to move position. |
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
