Woodworking MJ397 9.6m/Min Auto Feed Bandsaw High Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | MJ397 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | MJ397 | Max. Working Thickness: | 390mm |
|---|---|---|---|
| Max. Workpiece Width: | 550mm | Motor Power: | 7.5kw |
| Feeding Motor Power: | 0.3-0.45kw | Feeding Speed: | 1.8/3.7/2.8/5.8/4.7/9.6m/min |
| Saw Wheel Diameter: | 700mm | Condition: | New |
| High Light: | MJ397 auto feed bandsaw,MJ397 high speed band saw,9.6m/min high speed band saw |
||
Product Description

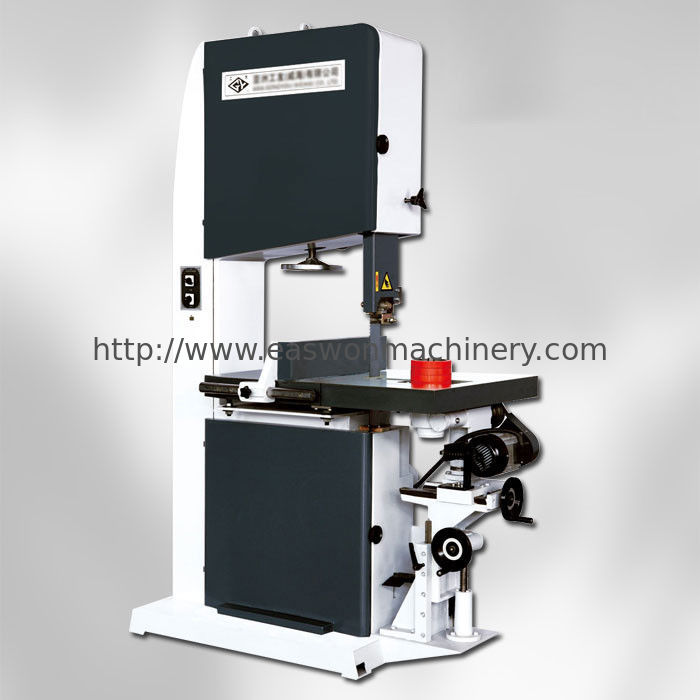

MJ397 Auto-feeding High-speed Wood - working Band Saw
woodworking band saw is drived by a pure copper motor of 7.5kw and a feeding motor of 0.3-0.45kw, aluminum alloy ruler, round linear guide rail, high precision upper/down saw guide etc make the cutting more accuracy and smooth, totally no problem to cut a veneer less than 1mm. Meanwhile V-belt tension device and saw blade release and tension device make the replacing parts easy and convenient.
Woodworking band saw Features:
1. The outer edge of saw wheel is covered with a flat belt to extend the service life of saw blade.
2. Woodworking band saw is equipped with aluminum alloy ruler with 128mm height, adopt round linear guide rail for movement, which can keep the high precision.
3. High precision up/down saw guide to ensure working accuracy. the band saw blade is used US Starrett brand, which is more durable.
4. The table's tilt is controlled by gear transmission system, it is more stable.
5. V-belt tensioning device is more convenient to replace the V-belt.
6. Quick saw blade release and tension device is easy to replace saw blade.
Woodworking band saw specification:
| Technical specification | Unit | MJ397 |
| Saw wheel diameter | mm | Ø700 |
| Max. workpiece width | mm | 550 |
| Max. working thickness | mm | 390 |
| Saw wheel speed | r/min | 800 |
| Feeding speed | m/min | 1.8/3.7/2.8/5/8/4.7/9.6 |
| Main motor power | kw | 7.5 |
| Feeding motor power | kw | 0.3-0.45 |
| Overall dimension | mm | 1600x900x2475 |
| Net weight | kg | 960 |
Package and shipping:
The band saw is packed by plywood case, which is suitable for FCL and LCL shipping.
 |
|
Application
Woodworking band saw is widely used in cutting round wood, sponge, rolled paper, aluminum, cloth, PVC pipe, insulation cotton and other materials, processing quality, high work efficiency.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
