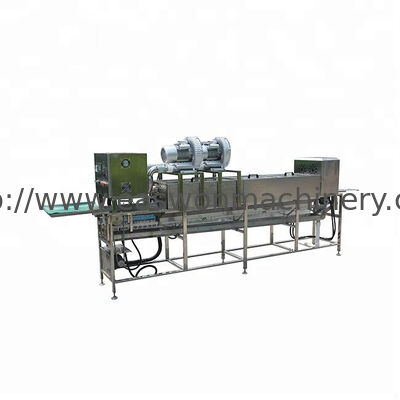

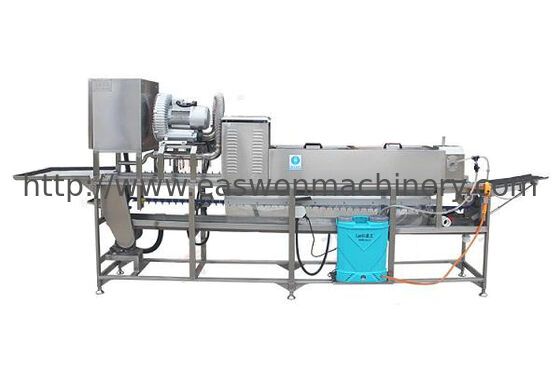

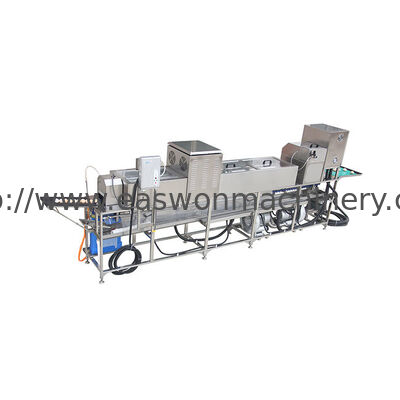

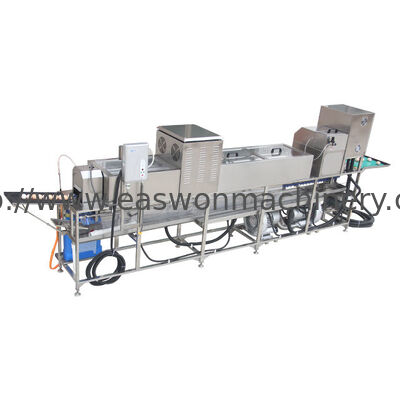

Sanitizer Sprayer Egg Washing Drying Machine With 3000 Eggs/Hour Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE, ISO |
| Model Number: | ZYX-J1-2 |
| Document: | 200A-2408 egg washer.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 set per month |
|
Detail Information |
|||
| Model: | ZYX-J1-2 | Capacity: | 3,000 Eggs/hour |
|---|---|---|---|
| Materials: | Stainless Steel | Function: | Manual Loading, Candling,sanitizer Sprayer,washing, Drying And Manual Collection Table |
| Power: | 5.71kw | Voltage: | 220V, 50HZ, Single Phase/ 380V, 50HZ, 3- Phases |
| Condition: | New | Warranty: | 1 Year |
Product Description
200A Egg Washer
Compact, High-Efficiency All-in-One Egg Cleaning System
Engineered for robust performance and high hygiene standards, the
Key Features
-
All-in-One Workflow: Integrates single-row roller conveyor loading, visual LED candling, automatic sanitizing, warm brush washing, and high-efficiency drying.
-
3,000 Eggs/Hour Capacity: Delivers stable, continuous processing to meet everyday commercial demands without compromising cleaning thoroughness.
-
Proportional Sanitizer Sprayer: Equipped with an automated doser that applies sanitizer/detergent solution evenly to help meet strict food safety regulations.
-
Heavy-Duty Stainless Steel: Built entirely from high-grade stainless steel for maximum corrosion resistance, durability, and ease of daily cleaning.
-
Advanced Water Removal: Features specialized rotary brushes and high-efficiency air drying, achieving up to 99% dryness prior to collection.
-
Low Labor Requirement: Operates with just 2 workers standard. Adding the optional vacuum egg lifter and accumulator allows efficient single-operator control.
-
Modular Line Compatibility: Easily pairs with the
101B Egg Grader 401H Egg Printer
Technical Specifications
| Feature / Parameter | Details |
| Product Code / Model | 200A / ZYX-J1-2 |
| Processing Capacity | 3,000 eggs/hour |
| Material | High-Grade Stainless Steel |
| Power Consumption | 5.71 kW |
| Voltage Options | 220V, 50Hz (Single Phase) / 380V, 50Hz (3-Phase) |
| Dimensions (L × W × H) | 5.18 m × 0.6 m × 1.55 m |
| Net / Gross Weight | 380 kg / 540 kg |
| Core Functions | Manual/vacuum loading, candling, sanitizer spray, brush washing, air drying, collection table |
|
|
| Single row feeding roller | Single row candling |
|
|
| Sanitizer sprayer (Proportional doser) | Egg washing with brushes and warm water |
|
|
| Remarkable drying system | Manual collection table |
|
|
| Control panel | The 604AS accumulator & 602 vacuum egg lifter for egg loading (optional) |
|
|
| 604AS Accumulator matches with egg washer |
The floor plan for the 200A egg washer with 604AS accumulator
200A Egg Washer Optional Accessories:
-
The 602 vacuum egg lifter (for quick, safe loading)
-
The 604A accumulators (Steamlines egg feeding)
-
The 401H egg printer (for date/batch coding)
