10,000 Eggs/hour Stainless Steel Egg Grading Sorting Machine From China
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE, ISO |
| Model Number: | FXB10-2 |
| Document: | 104B-Egg grader with 605A a...or.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 set per month |
|
Detail Information |
|||
| Model: | FXB10-2 | Capacity: | 10,000 Eggs/hour |
|---|---|---|---|
| Materials: | Stainless Steel | Accuracy: | ±1g |
| Grade: | 6 | Function: | Grading And Candling |
| Power: | 1.18w | Voltage: | 220-240V, 50HZ, Single Phase / 380-415V, 50HZ, 3-phase |
| Condition: | New | Warranty: | 1 Year |
Product Description
104B Egg Grader with 605A accumulator
Product Code: 104B
Capacity: 10,000 eggs/hour
Function: Grading & counting
Overview
104B Egg Grader
Engineered for performance and built to last, the 104B Egg Grader combines industrial-grade durability with precision sorting technology to meet the demands of high-volume egg production and packing operations.
Features
-
Robust Stainless Steel Construction
Crafted from high-quality stainless steel to ensure superior durability and ease of cleaning, maintaining hygiene standards in demanding environments.
-
Complete and Expandable System
The system includes the 605A accumulator, grading & counting, and manual collection table as standard components. Its functionality can be further expanded with optional accessories such as the
602 Vacuum Egg Lifter 401H Egg Printer -
Smart Touchscreen Control System
Features a user-friendly digital touchscreen and an automated PLC control system for precise operation, easy parameter setting, and real-time monitoring.
-
High-Precision Weighing & Grading
Accurately sorts eggs into up to 6 distinct weight grades using an advanced electronic scale, achieving a precision of within ±1 gram.
-
Seamless Line Integration
Can be directly connected with the 202A Egg Washer to form a 302AS egg washing grading line, enabling integrated washing and grading at a total capacity of 10,000 eggs/hour.
Specifications
| Specification | Details |
| Commodity | Egg grader |
| Product Code | 104B |
| Model | FXB10-2 |
| Capacity | 10,000 eggs/hour |
| Material | Stainless steel |
| Accuracy | ±1g |
| Grade | 6 grades |
| Power | 1.18KW |
| Voltage | 220-240V, 50Hz, Single phase / 380-415V, 50Hz, 3-phase |
| Dimension (L×W×H) | 5.94 × 3.3 × 2.0 M |
| Net Weight | 800 KG |
| Gross Weight | 1,130 KG |
| Function | Accumulator & candler, grading & counting, manual collection table, optional vacuum egg lifter and egg printer |

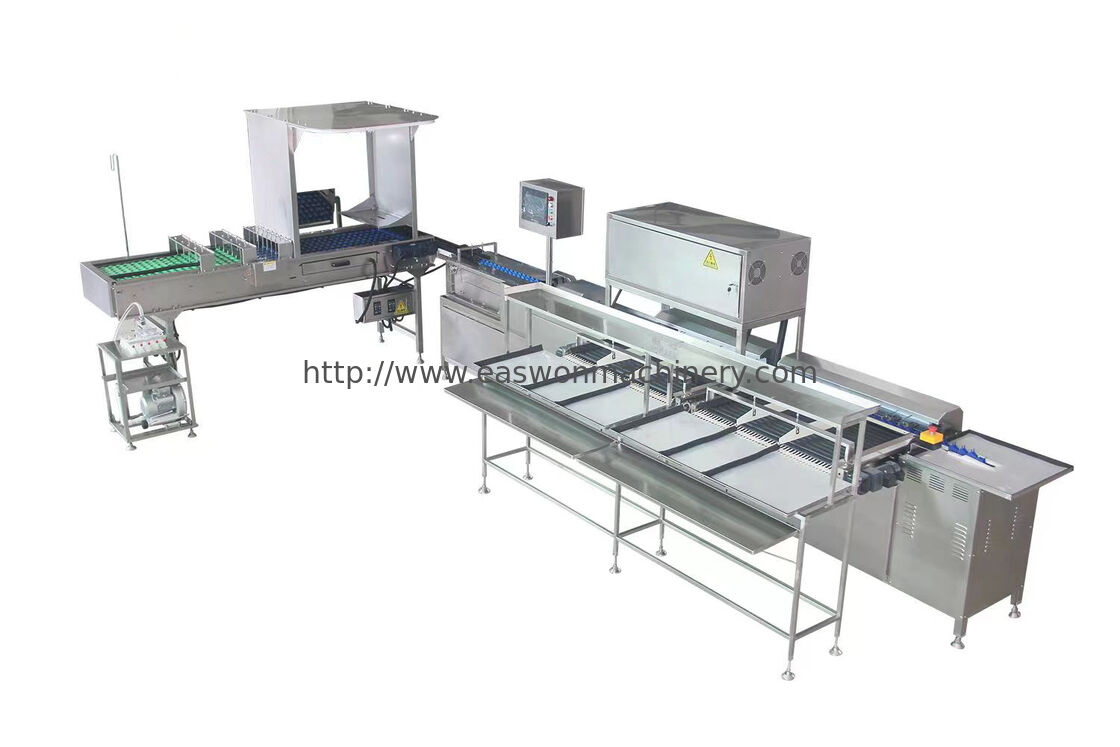

104B egg grade with 605A accumulator

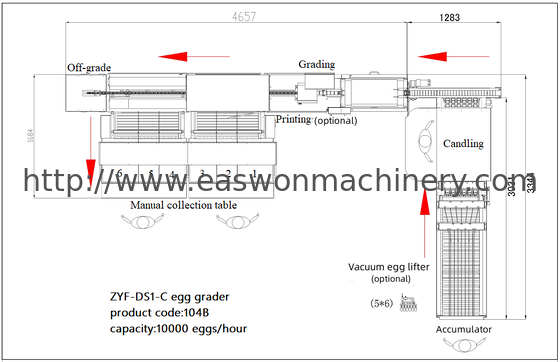

104B egg grade with 605A accumulator floor plan
|
|
| Electronic weighting system | Electronic weighting system |
|
|
| Electronic weighting system | Electronic weighting system |
|
|
| Touch screen and physical button control panel | 605A accumulator includes the orientator which can direct 6 lines eggs into 1 line |
|
|
| 602 vacuum egg lifter for optional | The 6-row candler with a candling cover and mirror |
|
|
| 401H egg printer matches on the 104B egg grader (optional) | Visual AI detector (optional) |
104B Egg Grader consist and options
Consist of:
-
The 605A Accumulator (candling included)
-
Egg grading & counting system
Optional Accessories:
-
410X Visual AI Detector
Packing and shipping
|
|

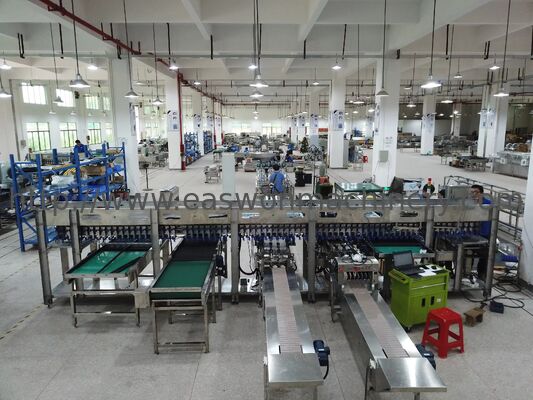

Factory profile:
|
|
|
|
