Product Details:

Place of Origin: China
Brand Name: Easwon
Certification: CE, ISO
Model Number: FBD30-4
Document: 109egggrader240820.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: plywood case
Delivery Time: 20-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 set per month
Get Best Price Contact Now

Detail Information
Model: FBD30-4 Capacity: 30,000 Eggs/hour
Materials: Stainless Steel Accuracy: ±1g
Grade: 4-7 Function: Accumulator,candling, Orientation, Grading & Counting,auto Packing And Manual Collection. Optional Printing And UV Disinfection
Power: 6.37w Voltage: 380-415V, 50HZ, 3-phase
Condition: New Warranty: 1 Year

Product Description

109 Industrial Egg Grader

All-in-One Automation for High-Volume Egg Processing

Designed for high-demand production environments, the 109 combines egg accumulation, candling, weight grading, counting, and automatic packing into a single high-efficiency system. With a processing capacity of up to 30,000 eggs per hour, it provides high accuracy, reliability, and smooth automation for modern poultry farms and processing centers.

Key Features

  • High-Capacity Processing: Handles up to 30,000 eggs/hour, keeping processing lines fast and efficient.

  • Precision Electronic Grading: Sorts eggs into 4 to 7 weight categories with an accuracy within ±1g.

  • Heavy-Duty Stainless Steel Construction: Built with high-grade stainless steel to ensure durability and strict hygiene standards.

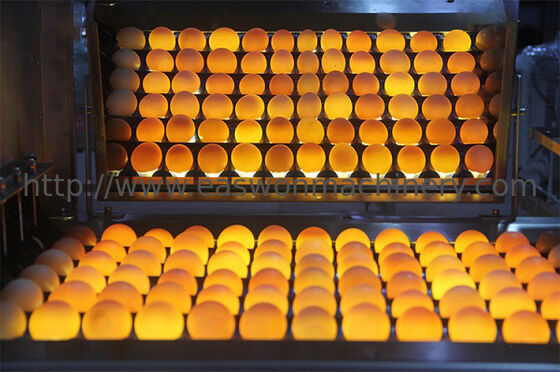

  • High-Accuracy LED Candling: Features high-intensity LED lighting, protective covers, and mirrors for clear visual inspection of defective eggs.

  • Automatic Air-Up Orientation: Automatically repositions eggs so the air cell faces upward, extending freshness and shelf life.

  • Smart Touchscreen & PLC Control: Intuitive color touchscreen user interface paired with a PLC system featuring built-in self-diagnostics for smooth daily operations.

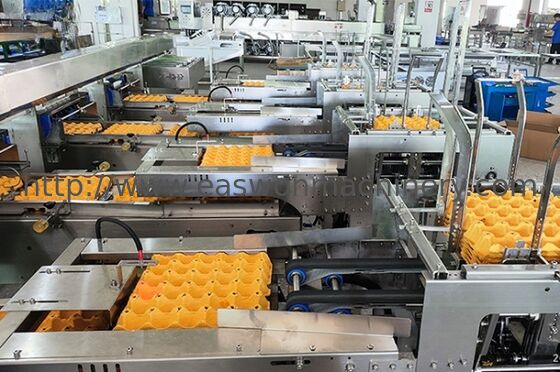

  • Scalable Auto-Packing: Includes 4 auto-packing lanes compatible with standard 10, 12, 15, 18, and 30-egg trays.

  • Real-Time Data Tracking: Tracks overall output and detailed counts per weight grade for easy production reporting.

Technical Specifications

Feature / Parameter Details
Model / Product Code FBD30-4 / Code 109
Capacity 30,000 eggs/hour
Grading Accuracy ±1 gram
Weight Grades 4–7 grades
Material Stainless Steel
Power Requirements 6.37 kW (380–415V, 50Hz, 3-Phase)
Dimensions (L × W × H) 7.8 m × 8.83 m × 2.0 m
Net / Gross Weight Approx. 3,060 kg / 4,280 kg
Function Accumulator,candling, orientation, grading & counting,auto packing and manual collection. optional printing and UV disinfection

30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine

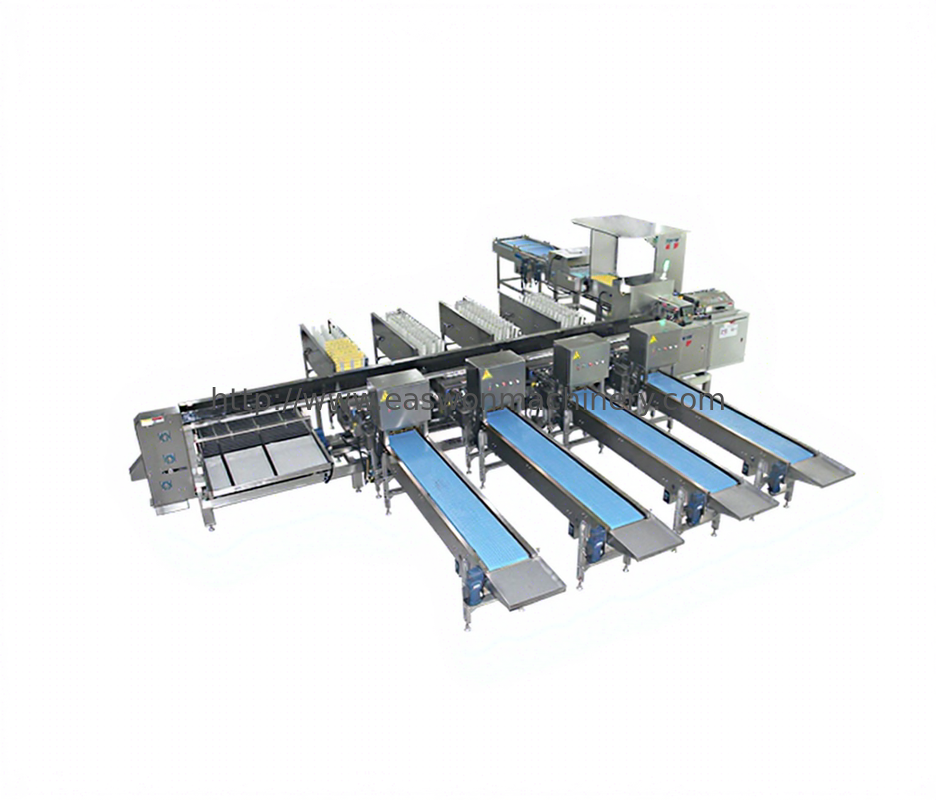

109 egg grader with 4 auto-packer

30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine

109 egg grader with 4 auto-packer

30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine

109 egg grader with 4 auto-packer floor plan right side

30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine

109 egg grader with 4 auto-packer floor plan left side

30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine

109 egg grader with 615 auotmatic egg loader

30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine

Optional Enhancements & System Integration

  • Automated Loading: Connects seamlessly with the 615 Automatic Egg Loader for hands-free feeding.

  • Full Washing & Grading Line: Pairs with the 204A Egg Washer to form a complete washing and grading line without reducing overall throughput.

  • UV Sanitization Module: Optional surface UV disinfection to maximize food safety before packing.

  • Visual AI Detector: Optional AI-powered inspection system for automated defect and surface quality checks.

  • On-Line Egg Printer: Compatible with the 401V egg printer for date and code tracking on eggshells.







30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine 30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine

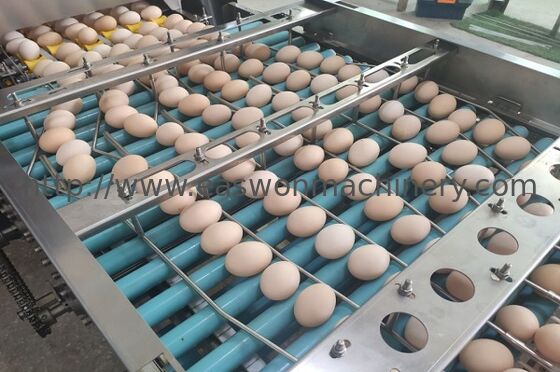

Accumulator Orientation
30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine 30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine
UV disinfection The 6-row candler with a candling cover and mirror
30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine 30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine

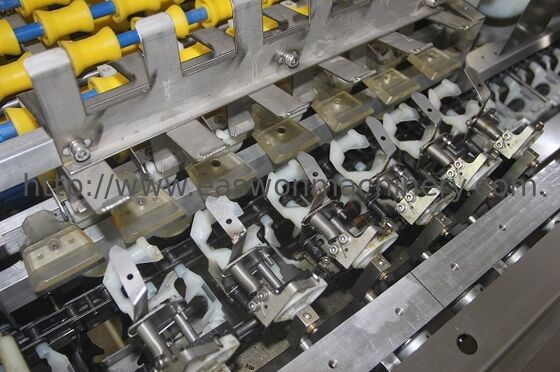

Electronic egg weighting system Manual empty egg tray loading
30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine 30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine
Auto empty tray de-nesting (optional) Drop-set unit
30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine 30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine
Egg tray collection conveyor Off grade
30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine 30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine
Touch screen and physical button control panel Touch screen user interface
30,000 Eggs/hour LED Candling Electronic Egg Grading Sorting Machine
Visual AI detector (optional)





109 Egg Grader consist and options

Consist of:

  1. Accumulator (candler and orientation included)

  2. 109 Egg grading & counting system

  3. Auto-packer (4 units)

  4. Manual collection table (1 unit)

Optional Accessories:

  • 615 automatic egg loader

  • 401V Egg Printer

  • 430X Visual AI Detector

  • UV disinfection

Packing and shipping
