Max Thickness 100mm Width 300mm Woodworking Band Saw Machine MJ1435F Multi Chip
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | MJ1435F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 work days |
|
Detail Information |
|||
| Max. Sawing Thickness: | 100mm | Max. Sawing Width: | 300mm |
|---|---|---|---|
| Min Sawing Length: | 360mm | Total Power: | 26.10kw |
| Feeding Speec: | 6-35m/min | ||
| High Light: | width 300mm Woodworking Band Saw Machine,thickness 100mm bandsaws woodworking,MJ1435F bandsaws woodworking |
||
Product Description

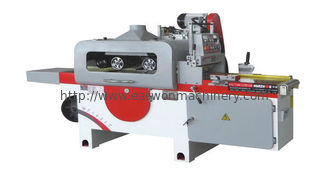

MJ1435F Automatic multi-chip saw machine max sawing thickness 100mm, width 300mm
Multiple chip saw Features:
1. This machine is a change of material, wood, wood core board is special, according to a preset size feed can saw cutting out much sticks, use of feeding wheel feed, and the upper and lower feed wheel, synchronous power feed.
2. Feeding wheel on a total of four groups, the wood of the pressure is controlled by a pressure cylinder material, visual wood hardness, free adjustment.
3. Adopt frequency control of motor speed, feeding speed can be visualized feeding speed, easier to control the speed.
4. The feed wheel feed, better than caterpillar feeding economic security, control and maintenance, material use pneumatic type, so even if the wood thickness change is big, also fixed pressure of material, material thickness range of the pressure is big, up to 35 mm.
5. Electric adjustment of feeding wheel frame and lifting and blade spindle movements, easy to operate.
6. Saw blade spindle can be dropped from saw blade saw blade working mesa, replacing saw blades.
7. Spindle use special alloy steel material, after heat treatment and precision grinding process for many times.
8. High precision bearing spindle all USES large specification, load resistance, long service life.
9. Security group, up and down and side safety barrier, protect the safety of operating personnel.
Multiple chip saw specification
| MJ1435F | ||
| Saw blade size | mm | Ø250- Ø355 x Ø70 |
| Max. sawing thickness | mm | 100 |
| Max. sawing width(open files) | mm | 300 |
| Min. sawing length | mm | 360 |
| Saw spindle speed | r/min | 3600 |
| Motor power | kw | 22 |
| Feeding motor power | kw | 3 |
| Elevating power of feeding mount | kw | 0.55 |
| Elvating power of saw mount | kw | 0.55 |
| Voltage | 380V, 50Hz, 3Ph | |
| Feeding speed | m/min | 6-35 |
| Overall dimension | mm | 2670x1200x1500 |
| Weight | kg | 1700 |
| Package | Wooden case |
Package and shipping:
The multiple chip saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
