75mm Thickness Woodworking Band Saw Machine 28H45 Wide Bench Panel Saw
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | 28H45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | 28H45 | Max. Sawing Thickness: | 75mm |
|---|---|---|---|
| Max. Moveable Distance Of Table: | 2800mm | Spindle Motor Power: | 5.5kw |
| Scoring Saw Motor Power: | 1.1kw | Max. Saw Blade Tilt Angle: | 45° |
| Max. Saw Blade Diameter: | 300mm | Condition: | New |
| Warranty: | 1 Year | Application: | Furniture Factories |
| High Light: | 28H45 Woodworking Band Saw Machine,28H45 bench panel saw,75mm Wide bench panel saw |
||
Product Description

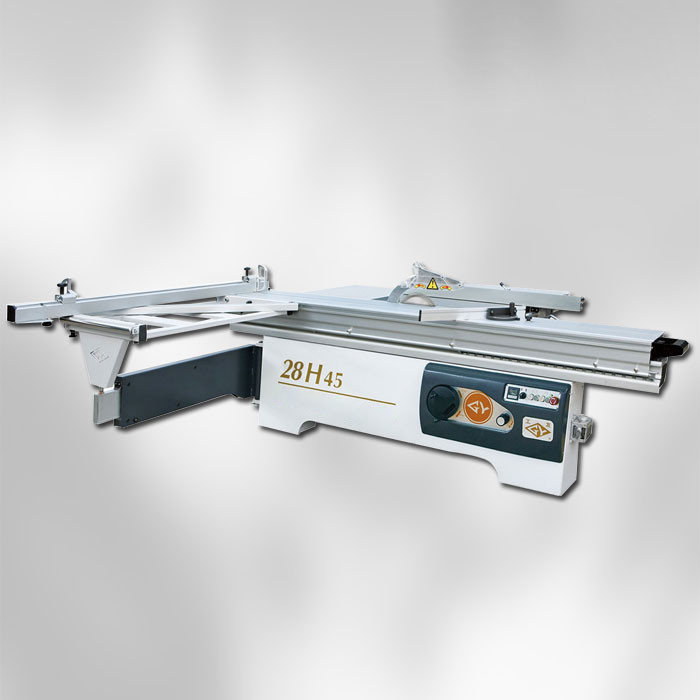

28H45 Wide bench panel saw
28H45 Wide bench panel saw is designed to processing large sheet boards. The heavy duty sliding table glides alone robust round rod raid provide smooth operation. The panel saw is accommodated with both 120mm and 300mm blade, and is powered by 5.5kw main motor and 1.1kw scoring saw motor that spins at 9000rpm to virtually eliminate tearout and produce clean cuts every time. The main saw is automatically lifted by a 70w small motor. The push botton is on front operation panel, which is easy operation. The blade tilt angel is from 0° to 45°, can meet your different cutting demands.
28H45 Wide bench panle saw specification:
| Technical specification | Unit | 28H45 |
| Max moveable distance of table | mm | 2800 |
| Max. sawing thickness | mm | 75 |
| Main saw blade diameter | mm | Ø300 |
| Main spindle diameter | mm | Ø30 |
| Main spindle speed | r/min | 4000/5000 |
| Max. saw blade tilt angle | ° | 45° |
| Scoring saw spindle speed | r/min | 8700 |
| Main saw lifting motor | w | 70 |
| Scoring saw spindle diameter | mm | Ø20 |
| Scoring saw blade diameter | mm | Ø120 |
| Scoring saw motor power | kw | 1.1 |
| Spindle motor power | kw | 5.5 |
| Overall dimension | mm | 3050x3200x820 |
| Net weight | kg | 720 |
28H45 Wide bench panel saw details:
 | |
| High strength telescopic arm processing | Ultra-quiet spindle at a high speed |
| |
| Main shaft adopts linear guide electric lifting structure | High precision ultra wide bench with high accuracy |
Package and shipping:
The precision panel saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
