4 Row Woodworking Milling Machine 2840r/Min Multi Head Drilling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | MZ7321D, MZ7421D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden carton |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 200sets per month |
|
Detail Information |
|||
| Item: | Multi Head Drilling Machine | Keyword: | Woodworking Milling Machine |
|---|---|---|---|
| Voltage: | Customer's Requirement | Power(w): | According To Your Order |
| Certification: | CE | Range Of Spindle Speed(r.p.m): | 2840r/min |
| High Light: | 4row Woodworking Milling Machine,4row multi head drilling machine,2840r/min multi head drilling machine |
||
Product Description

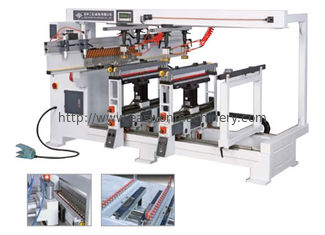

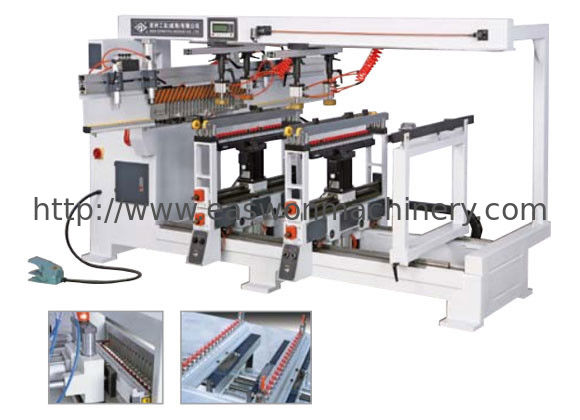

MZ7321D/MZ7421D Three-row/Four-row Multiple Spindles Drilling Machine
| MZ7321D | MZ7421D | ||
| Motor total power | kW | 3×1.5 | 4×1.5 |
| Motor speed | r/min | 2840 | 2840 |
| Working table size | mm | 1800×1000 | / |
| Working table height | mm | 920 | 920 |
| Max. workpiece thickness | mm | 60 | 60 |
| Drilling depth | mm | 60 | 60 |
| Compressed air pressure | Mpa | 0.5-0.6 | 0.5-0.6 |
| Min. spindle center distance | mm | 32 | 32 |
| Amount of drilling spindles | pc | 21×3 | 21×4 |
| Max. spindle center distance | mm | 640 | 640 |
| Overall dimensions | mm | 2622×2435×1480 | 3200×2435×1480 |
| Net.weight | kg | 1510 | 1800 |
