Wood Shaving production line for livestock and poultry bedding
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE, ISO |
| Model Number: | SH1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Working Wood Width: | 1000mm | Working Wood Length: | 2600mm |
|---|---|---|---|
| Shaft Quantity: | 4pcs | Total Power: | 108kw |
| Productivity: | 4000kg/h | Wood Shaving Depth: | 0.2-0.5mm |
| Warranty: | 1 Year | Condition: | New |
| Highlight: | wood shaving production line for livestock,horizontal band sawmill for poultry bedding,wood shaving machine with warranty |
||
Product Description
Wood Shaving production line for livestock and poultry bedding
Our state-of-the-art Wood Shaving Production Line is a fully automated, integrated solution designed to transform raw wood logs, timber offcuts, and wood scraps into high-quality, uniform wood shavings. Engineered for high output and low energy consumption, this production line streamlines the entire process—from raw material feeding and shaving to drying, screening, and packaging.
Whether you are producing bedding for livestock, material for particleboard manufacturing, or compressed wood logs, our production line offers the reliability and flexibility to meet diverse market demands.
Wood shaving productin line key Components
-
Log Conveyor System: Automates the feeding process, reducing labor costs and ensuring a steady material flow.
-
Wood Shaving Machine (Flaker): The core of the line, equipped with high-speed, adjustable blades to control shaving thickness and size.
-
Rotary Drum Dryer: Optimizes moisture content, ensuring the shavings are perfectly dried for storage, packaging, or further processing.
-
Vibrating Screen/Sifter: Sorts the shavings, separating premium quality products from fine dust and oversized pieces.
-
Automated Baling & Packaging Machine: Compresses and packs the finished shavings into tightly sealed bags for easy transport and storage.
| Log cutter | |
Infeed conveyor length:7000 Outfeed conveyor length:3000mmm Maximum Log Length:6000mm Cutting Width:800mm Cutting Height:300mm Motor Power:15KW Saw Blade Diameter:1000mm |

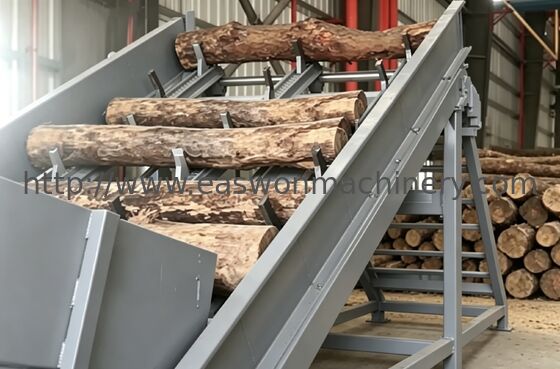

| Log Loading Rack | |
Model:SHSL5000-1000 Conveyor Belt Horizontal Length:3000mm Conveyor Belt Slope Length:2000mm Conveyor Width:1000mm Chain Quantity: 3 Motor Power: 6KW Weight:1000KG |

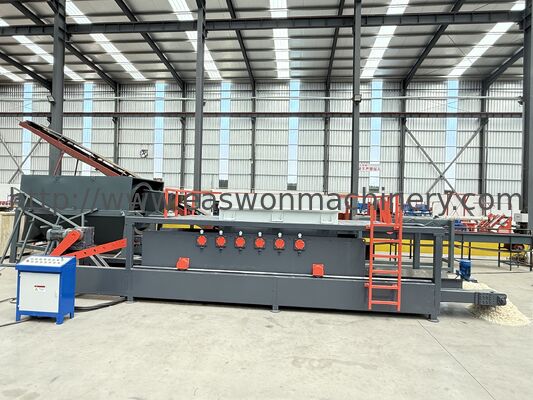

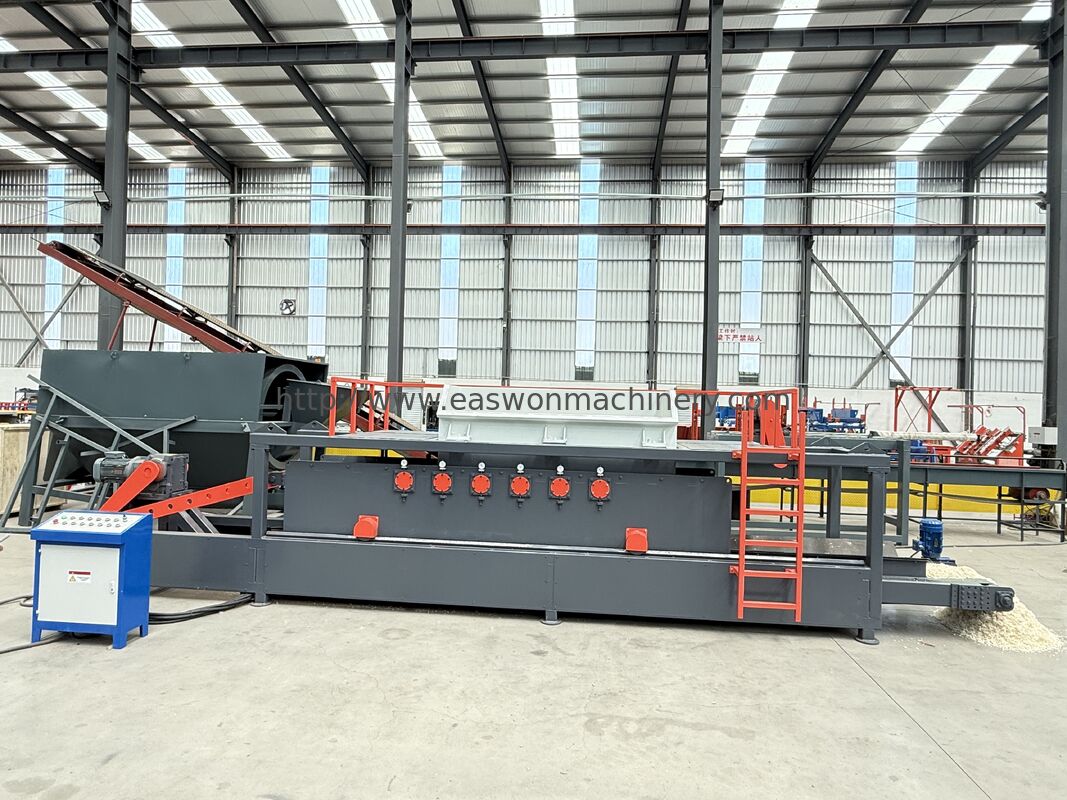

| Wood Shaving Machine | |
Model: SHBH650-4 Max processing wood length: 1400mm Max processing wood width: 650mm Axle Quantity: 4 Blade Quantity:24 Speed(r/min): 3500 Hopper Length(mm): 1400 Motor Power(kw): 11kw*4 Feeding Motor:5.5kw Discharge Conveyor Motor:3kw Wood shaving depth(mm): 0.2-0.5 Fresh Wood Production Capacity: 2000-2500kg/hour Size:5800*1800*2000 Weight:5500kg |
| Ramp Conveyor Belt | |
Model:SHPP8000 Conveyor belt length:8000mm Conveyor belt width:600mm Motor power:3kw Weight:700kg |

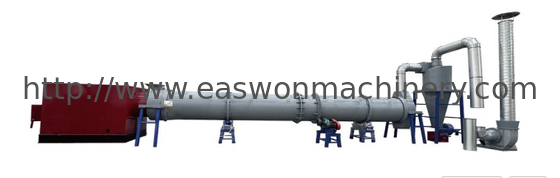

| Tumble Dryer | |
Model:HG1818 Size:1.8*18m Production Capacity:3ton/h Motor Power:18.5kw Weight:21000kg |
| Ramp Conveyor Belt | |
Model:SHPP8000 Conveyor belt length:8000mm Conveyor belt width:600mm Motor power:3kw Weight:700kg |
| Rotary Screen | |
Model:SH3000-1500 diameter of cylinder:1500mm drum length:3000mm motor power:3kw weight:1000kg |

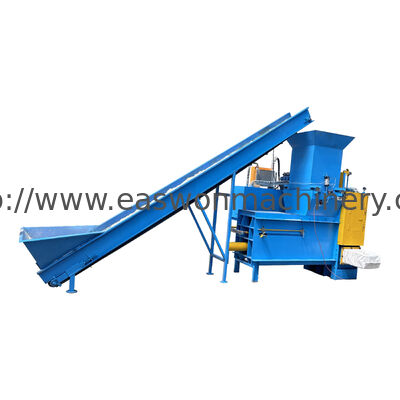

| Wood Shaving Baler Machine | |
Model:SHDB-20 Motor: 22KW-4P Hydraulic pump: 25VQ25 (Low-pressure vane pump) Hydraulic valve: LQ32 (Plate-type cartridge valve block) Hydraulic cylinder: ɸ140*1, ɸ160*2 (Thick-walled high-pressure cylinder) Electrical system: PLC control system, Chint auxiliary control components Operating system: Manual + fully automatic Filter: 400L/min Cooling system: Air Cooler(Warp-type) Heating system: 3KW (Specially for hydraulic oil heating) Oil tank: 500L (4mm iron plate) Steel plate: Q235B (Main body 10mm steel plate) Feeding conveyor: 5000*500mm, (Motor Power: 1.5kw) Package size: 700*300*400mm, Efficiency: 100-120 packages/hour Package weight: 20 kg |
| Bag Sealing Machine | |
Model:450 Sealing Length:450mm Sealing Time:0.2-2s Sealing Width:8mm |
Features & Advantages
-
Exceptional Capacity: Delivers high-volume output ranging from 500 kg/h up to 4,000 kg/h depending on the specific model configuration (e.g., from single-axle to heavy-duty 6-axle configurations).
-
Versatile Material Processing: Capable of effortlessly handling heavy raw materials, accommodating log lengths from 800 mm up to 2600 mm and widths up to 1000 mm.
-
Adjustable Shaving Sizes: Easily adjust the blade configuration to produce customized shaving thicknesses and sizes tailored to specific industrial or agricultural needs.
-
Full Automation & PLC Control: Equipped with an advanced PLC intelligent control panel, allowing the entire line to be operated with minimal labor, maximizing safety and operational efficiency.
-
Robust & Durable Design: Built with high-strength carbon steel and premium alloy blades, ensuring a long service life and minimal maintenance downtime.
-
Eco-Friendly & Energy Efficient: Integrated dust recycling and optimized thermal efficiency in the drying system significantly reduce carbon footprint and operational costs.
Technical Applications
The finished wood shavings are widely utilized across multiple industries, including:
-
Animal Bedding: Premium, dust-free bedding for horses, poultry, and laboratory animals.
-
Manufacturing: Raw materials for particleboard, MDF, and wood-based composite panels.
-
Bioenergy: Biomass pellet production and compressed eco-logs.
-
Logistics & Packaging: Cushioning material for fragile goods transport.
Package and shipping:
The wood shaving machine is packed by plywood case or loose, which is suitable for FCL and LCL shipping.
|
|
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
