Auto Forward Backward L12m Wood Bandsaw Mill Horizontal For Hardwood
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | MJ2500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | MJ2500 | Max. Sawing Width: | 2500mm |
|---|---|---|---|
| Max. Sawing Height: | 2200mm | Max. Sawing Thickness: | 400mm |
| Power: | 55kw | Sawing Wood Length: | 12m |
| Condition: | New | Warranty: | 1 Year |
| High Light: | Auto forward wood bandsaw mill,L12m wood bandsaw mill,L12m hardwood sawmill |
||
Product Description

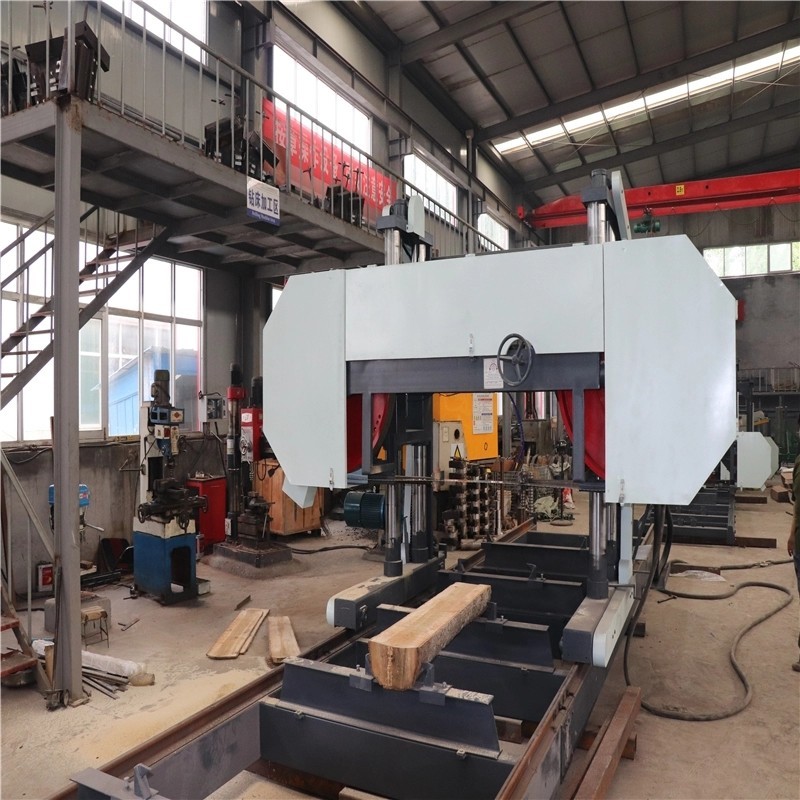

MJ2500 heavy duty horizontal band sawmill
Auto forward/backward hardwood horizontal band sawmill
Our large horizontal band sawmill can saw max. log's diameter of 2500mm with strong power for both hardwood and softwood, especially hardwood, the horizontal band sawmill is configured sawing thickness by touch screen, which is more convenient and accurate. The forward/backward of band sawmill is adjusted by variable frequency with the speed of 1-20m/min. At present, our horizontal band sawmill is mainly exporting to Congo, Cabon, Angola, Fiji, Suriname etc. It is widely used in lumber factory, furniture factory, forestry farm etc.
Horizontal band sawmill specification:
| Model | Unit | MJ2500 |
| Max. sawing width | mm | 2500 |
| Max. sawing height | mm | 2200 |
| Saw wheel diameter | mm | 1070 |
| Max. sawing thickness | mm | 400 |
| Sawing wood length | mm | 12000 |
| Saw blade size | mm | 1.25x150x10500 |
| Motor power | kw | 55 |
| Weight | kg | 5500 |
Horizontal band sawmill show:
 |
|
|
|
|
|
|
|
Horizontal band sawmill features:
|
The power can be also 60HP or 100HP 4-cylinder diesel engine. | |
High quality SKF Bearings from Sweden |
|
4 stand columns and precision screw to make sure the saw wheel's up and down is stable and accurate |
|
Turning, cylindrical grinding, chroming makes sure the stand columns is smooth and precision. Wear resistance copper sliding bush |
|
The band sawmill is using Taiwan FATEK PLC central touch screen panel, circuitry concentrating on the control panel to control the sawing thickness digitally, it will be more accurate. | |
Central saw wheel design makes the saw wheel running stable, extend the working life, and reduce the probability of band saw blade break down. |
|
Counterweight steel makes the blade more flexible and not easy to break. | |
Variable frequency speed adjustable forward/backword, the forward speed is 1-20m/min, which is high efficient. |
Finished product:
|
|
|
|
Packing and shipping
Generally, the horizontal band sawmill is packed by plastic film, and loaded into 20ft container.
|
|
|
Horizontal Band sawmill customer show:
|
|
|
| Angola | Ghana | Congo |
|
|
|
| Canada | Holland | Angola |
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
