MJ1412-40 Automatic Multiple Rip Saw Machine For Processing Solid Wood Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | MJ1412-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Model: | MJ1412-40 | Min. Sawing Length: | 550mm/360mm |
|---|---|---|---|
| Max. Sawing Width(open File): | 400mm | Max. Sawing Thickness: | 115mm |
| Saw Blade Size: | 250-355/405mm X 70mm | Main Motor Power: | 45kw |
| Feeding Motor Power: | 4kw | Feeding Speed: | 9-35m/min |
| Condition: | New | Warranty: | 1 Year |
| High Light: | Solid Wood Panel Automatic Rip Saw,Automatic Rip Saw Machine,Multiple Table Band Saw 550mm |
||
Product Description
MJ1412-40 Automatic Multiple Rip Saw
MJ1412-40 can professionally solve the vertical multi-blade sawing of wood with a processing width of 400mm or less and a processing thickness of 120mm or less Mainly applicable industries: construction sites, furniture, packing boxes, etc..
Multiple rip saw is widely used for processing solid wood panel, MDF, particle board, plywood etc with high efficient and precision.
MJ1412-40 Multiple rip saw features:
-
1. This machine is specially used for the production of modified materials, wooden strips and wood core boards. According to the preset size, multiple wooden strips can be sawed out in one feeding. The feeding wheel is used for feeding, and the upper and lower feeding wheels are used for synchronous feeding.
2. The feeding wheel feed is more economical than the crawler feeding, and it is easier to control and maintain. The pressing material adopts the air pressure type, so even if the thickness of the wood changes greatly, the pressing pressure is also fixed, and the thickness of the pressing material is wide, up to 35 mm.
3. The upper two anti-rebound and the next anti-rebound sheet group have side baffles to effectively protect the operator.
4. The main shaft adopts large-sized and high-grade bearings, which are load-resistant and have a long service life.
5. The saw blade spindle can be lowered to make the saw blade leave the saw blade work surface, and it is easy to replace the saw blade.
6. The main shaft is made of special alloy steel, which has been heat treated and ground for many times.
7. There are 6 groups of upper feeding wheels. The pressure of pressing the wood is controlled by the pressing cylinder, which can be adjusted freely depending on the hardness of the wood.

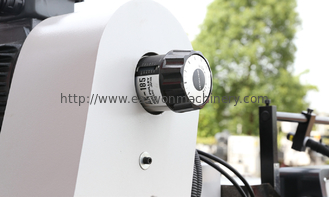

8. Electric adjustment of the upper feeding wheel frame and the lifting and lowering of the saw blade spindle is easy to operate.
9. The feeding speed adopts stepless speed change, which is easy to adjust and maintain.
Specifications:
| Technical specification | Unit | MJ1412-40 |
| Saw blade size | mm | Ø250-Ø355/405 x Ø70 |
| Min. sawing length(intermittent/continuous) | mm | 550/360 |
| Max. sawing thickness | mm | 100(355 saw blade), 115(405 saw blade) |
| Max. sawing width | mm | 400 |
| Total power | kw | 50.10 |
| Main spindle speed | r/min | 2970 |
| Main motor power | kw | 45 |
| Feeding motor power | kw | 4 |
| Elevating power of feeding mount | kw | 0.55 |
| Elevating power of saw mount | kw | 0.55 |
| Feeding speed | m/min | 9-35 |
| Dust outlet diameter | mm | Ø150 |
| Overall dimension | mm | 3000x1300x1500 |
| Net weight | kg | 2500 |
Multiple Rip saw details:
|
|
| The upper and lower four driving wheels are synchronously feeding, which is powerful and powerful. The widening double-support feeding wheel is more suitable for wide material sawing. | The high-torque reduction worm gear box is equipped with a universal joint for smoother feeding |
|
|
| The upper and lower multiple anti-rebound devices can effectively prevent the wood from rebounding and hurting people | The feeding speed can be adjusted in multiple gears, and the suitable speed can be selected according to different requirements. |
|
|
| The automatic oil supply pump automatically supplies oil to the key parts of the transmission | Standard laser marking instrument, accurate alignment of wood sawing position, improve wood yield |
|
|
| Mist water spray device, prolong the service life of the saw blade, and minimize the amount of water received by the wood |
Package and shipping:
The rip saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
