8700RPM Woodworking Band Saw Machine G45 G90 Precision Panel Saw
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | G90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | G90 | Max. Sawing Thickness: | 75mm |
|---|---|---|---|
| Max. Moveable Distance Of Table: | 2800mm | Spindle Motor Power: | 5.5kw |
| Scoring Saw Motor Power: | 1.1kw | Max. Saw Blade Diameter: | 300mm |
| Condition: | New | Warranty: | 1 Year |
| High Light: | G45 Woodworking Band Saw Machine,8700RPM precision panel saw,G90 precision panel saw |
||
Product Description

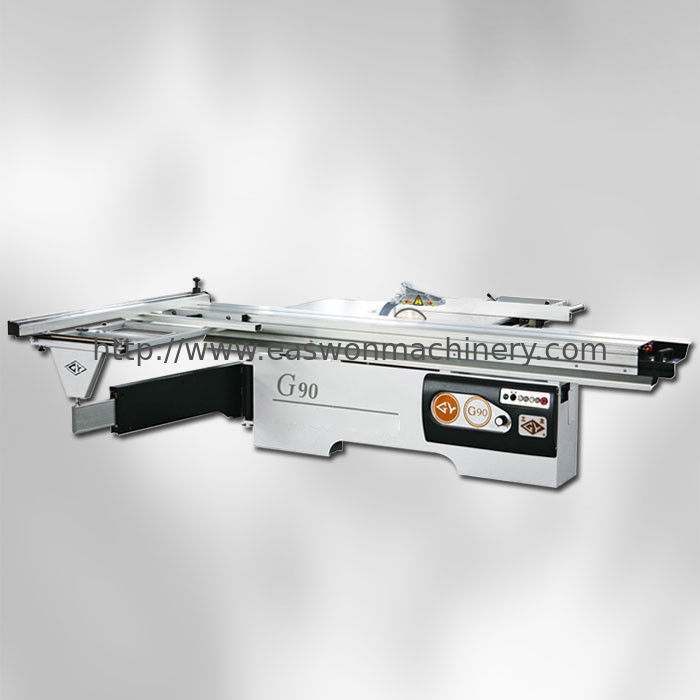

G45, G90 Precision panel saw
G45,G90 Precision panel saw is designed for sawing large board like plywood, mdf, particle board, solid wood etc. The precision panel saw is accommodated with 300mm saw blade, and powered by 5.5kw pure copper electromotor, joined by 1.1kw scoring saw blade motor that spins at 8700RPM to virtually eliminate tearout and produce clean cuts every time. The main saw lifting is powered by a small motor of 70W, which is more smooth and precision. All other features like 50mm solid rip fence rail, large table with cross cut fence etc make this model of precision panel saw can handle any cutting works, but only require limited budget.
Precision panel saw specification:
| Technical specification | Unit | H90 | 32H45 | G45 | G90 |
| Max moveable distance of table | mm | 2800 | 3200 | 2800 | 2800 |
| Max. sawing thickness | mm | 75 | 75 | 75 | 75 |
| Main saw blade diameter | mm | Ø300 | Ø300 | Ø300 | Ø300 |
| Main spindle diameter | mm | Ø30 | Ø30 | Ø30 | Ø30 |
| Main spindle speed | r/min | 4000/5000 | 4000/5000 | 4200 | 4200 |
| Max. saw blade tilt angle | / | 45° | 45° | / | |
| Scoring saw spindle speed | r/min | 8700 | 8700 | 8700 | 8700 |
| Main saw lifting motor | w | / | 70 | 70 | 70 |
| Scoring saw spindle diameter | mm | Ø20 | Ø20 | Ø20 | Ø20 |
| Scoring saw blade diameter | mm | Ø120 | Ø120 | Ø120 | Ø120 |
| Scoring saw motor power | kw | 1.1 | 1.1 | 1.1 | 1.1 |
| Spindle motor power | kw | 5.5 | 5.5 | 5.5 | 5.5 |
| Overall dimension | mm | 3050x3200x820 | 3450x3200x820 | 3050x3200x820 | 3050x3200x820 |
| Net weight | kg | 650 | 740 | 720 | 710 |
Package and shipping:
The band saw is packed by plywood case, which is suitable for FCL and LCL shipping.
 |
|
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
