8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | MJ162B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | MJ162B | Min. Sawing Length: | 300mm |
|---|---|---|---|
| Max. Sawing Thickness: | 60mm | Saw Blade Quantity: | 2-8pcs |
| Main Motor Power: | 7.5kw | Feeding Motor Power: | 1.1kw |
| Feeding Speed: | 5;10m/min | Condition: | New |
| Warranty: | 1 Year | ||
| High Light: | 8pcs multiple rip saw machine,MJ162B multiple rip saw machine,MJ162B workshop bandsaw |
||
Product Description
MJ162B Automatic Multiple Rip Saw
MJ162B Multiple rip saw can process short wood materials of 300mm length with max thickness of 60mm. It is drived by a 7.5kw copper motor and a 1.1kw feeding motor. The saw blade can be adjusted from 2 pcs to 8 pcs as per your requirement.
Multiple rip saw is widely used for processing solid wood panel, MDF, particle board, plywood etc with high efficient and precision.
MJ162B Multiple rip saw features:
1. This machine adopts integral casting body with stable performance, good precision and good rigidity.
2. The automatic lubricator delivers frequent lubrication oil to the caterpillar chain.
3. All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
4. Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance.
5. The entire Cast Iron – Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.
Specifications:
| Technical specification | Unit | MJ162B |
| Min. sawing length | mm | 300 |
| Max. sawing thickness | mm | 60 |
| Saw blade diameter | mm | Ø250 |
| Saw blade quantity | pcs | 2-8 |
| Main spindle speed | r/min | 4500 |
| Main motor power | kw | 7.5 |
| Feeding motor power | kw | 1.1 |
| Feeding speed | m/min | 5;10 |
| Overall dimension | mm | 1450x830x1085 |
| Net weight | kg | 600 |

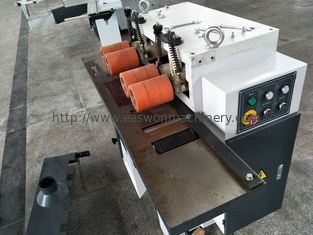

Multiple Rip saw details:
 |
|
|
|
Package and shipping:
The rip saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
