Corner Trimming 0.8mpa 18m/Min Woodworking Edge Banding Machine For Wooden Chair
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | FZ-450D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden carton |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 100sets per month |
|
Detail Information |
|||
| Panel Thickness: | 10-60mm | Edge Thickness: | 0.4-3mm |
|---|---|---|---|
| Panel Width: | ≥80mm | Power: | 11.13kw |
| High Light: | 18m/Min Woodworking Edge Banding Machine,0.8mpa wooden chair making machine,18m/Min wooden chair making machine |
||
Product Description

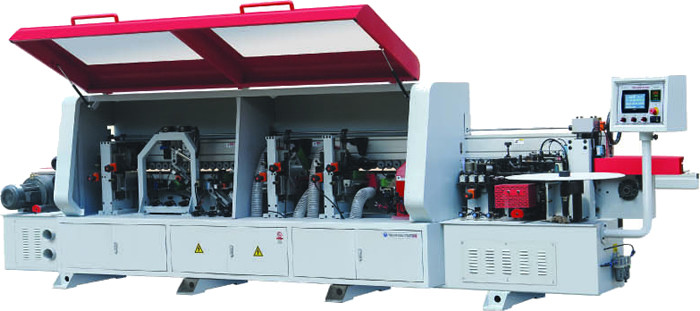

FZ-450D Auto Edge Banding Machine(Corner trimming)
1. Function of edge bander: buffing, scraping, fine trimming, rough trimming, end trimming, gluing, corner trimming.
2. Application: used for edge banding for MDF, particle board, plywood, blockboard, solid panel etc.
Trimming Scraping Buffing End trimming Gluing Corner trimming
|
Main technical parameter |
|
|
Model |
FZ-450D |
|
Motor power |
11.13kw |
|
Working voltage |
AC380V 50HZ, 3PH |
|
Overall size |
6100x1100x1600mm |
|
Feeding speed |
12-20m/min |
|
Panel thickness |
10-60mm |
|
Edge thickness |
0.4mm-3mm |
|
Panel width |
≥80mm |
|
Working air pressure |
0.8mpa |
|
Weight |
2500kg |
|
Package |
Wooden case |
|
Package size: |
6000x1000x1800mm |
|
Gross weight |
2600kg |
|
Configuration form |
|
|
Pre-milling |
/ |
|
Gluing |
● |
|
End trimming |
● |
|
Rough trimming |
● |
|
Fine trimming |
● |
|
Profiling unit |
● |
|
Scraping |
● |
|
Buffing |
● |
|
Grooving |
/ |
