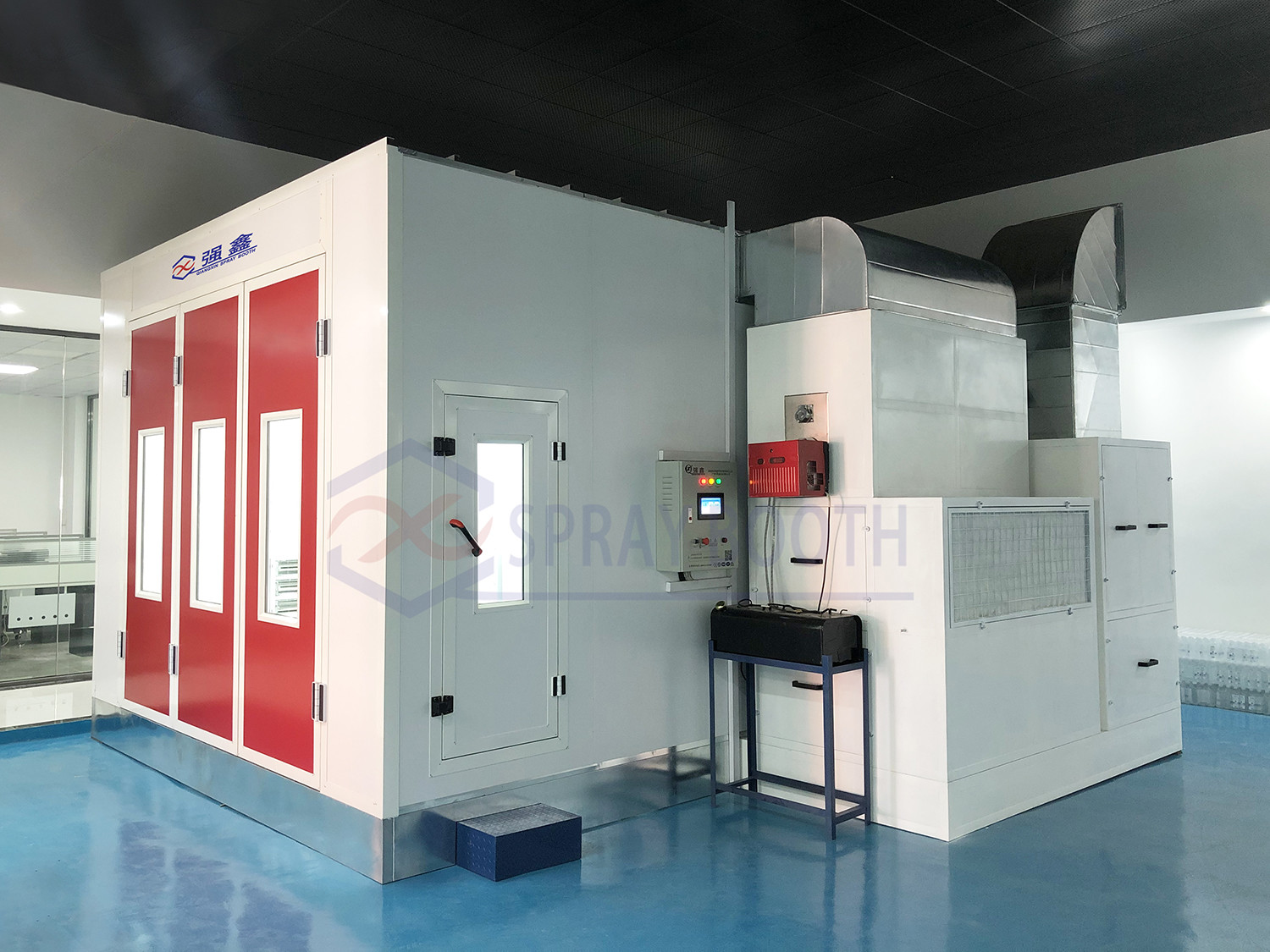

Diesel Engine Auto Painting Oven Car Infrared Spray Booth With 40pcs LED Lamps
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | QX2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Model: | QX2000 | Wallboard: | 50mm EPS |
|---|---|---|---|
| Inner Dimension: | 9000x4500x3500mm | Outer Dimension: | 9100x6100x4150mm |
| Lighting System: | 40pcs 18w Energy Save LED Lamps | Total Power: | 16.5kw |
| Control System: | Touch Screan | Dry Source: | Riello G20 Diesel Burner |
| Condition: | New | Warranty: | 1 Year |
| Highlight: | Auto Painting Car Infrared Spray Booth,LED Lamps Infrared Spray Booth,Diesel Engine Oven Spray Booth |
||
Product Description
QX2000 Auto Painting Oven Car Infrared spray booth(luxury type, Diesel engine) (the power can be also electric)
Features:
1. Professional supplier with 20 years experience ISO certificate
2. Lamp boxes are 45° fixed on upper two sides, with 10 groups x 4pcs = 40pcs 18w energy saving LED lamps
3. Infrared lamps quick drying system
4. The baking lamps is equipped with an induction system and dustproof device
5. Dust-free room for painting,good performance in baking
6. Micro-computer Programmed Controlling,touch screen
7. 50mm EPS(epispastics polystyrene) insulation material with S=0.476 two side steel panel
8. Our products had sold to Germany,Norway,Nigeria,Egypt,Saudi Arabia,The United Arab
Emirates,Ethiopia,Qatar,Libya,Namibia,Cameroon,Ghana,Togo,Angola,Tanzania,Seychelles,Sudan,Philippine,Malaysia,Singapore,Australia,Russian Federation etc...
Speciication:
| Inside dimension | 9000x4500x3500mm |
| Outside dimension | 9100x6100x4150mm |
| Entrance door | Aluminum alloy binding frame work(thickness 108mm), 1 set folding door size: 3450x3400mm |
| Personal door | 1 set side hung door: 700x1700mm |
| Wallboard | 50mm EPS(epispastics polystyrene) insulation material with S=0.526mm two side steel panel, width 1150mm |
| Lighting system | Lamp boxes are 45° fixed on upper two sides, with 10 groups*4pcs= 40pcs, 18W energy saving LED lamp |
| Air intake and Exhaust system |
With 2pcs centrifugal air blowers, total parameter: YDW4.5L1, 2*4KW, 25000m3/h With 1pc centrifugal air blowers, single parameter: DDF630B, 7.5kw, 23000m3/h |
| Cabinet setting |
Intake air from upside, downside exhaust wind. Frame is made of tube 50*50mm, body plate is made of galvanized plate(thickness: 0.8mm) |
| Air duct | Made of galvanized plate(thickness is 0.8mm), 700*700*900mm, 2pcs straight, 1pc elbow |
| Heating system | With 1pc riello G20 diesel burner, 1pc stainless steel heat exchanger, 1pc actuator, 1pc fuel box, 1pc fuel box shelf, maximum heat output 250000kcal/h. The operating temperature: 50℃-60℃. Max. temperature: 70℃ |
| Filtration system |
The top of the room is equipped with CC-G650 high efficiency filter device, which can effectively filter 5pm dust particles. The air inlet is equipped with 300 initial filter device, and the top filter cotton pad is pressed by galvanized steel plate. Equipped with 1 layer of glass fiber paint mist filter cotton, 3 layers of activated carbon filter, 1 environmental protection cabinet. |
| Roof | Galvanized steel panel |
| Basement |
High performance antirust treatment 5 rows of grille galvanized(upgraded) The column for high strength 40*80mm galvanized square. 2 pcs antirust treatment ramps: 2000*630mm |
| Control system | Painting, baking, temperature controller, breakdown indicator, power switch, emergency stop switch, and time setting |
| Voltage | 380v, 50hz, 3ph |
| Light intensity | ≥1000luxes |
| Air flow speed | ≥0.25m/s |
| Total power | 16.5kw |
| Loading | 1x20’FCL |
The schematic drawing of spray booth:
Spray booth details:
Package & Shipping:
One set car spray booth with 21-22CBM 3 Tons can be loaded in 20 feet container.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
