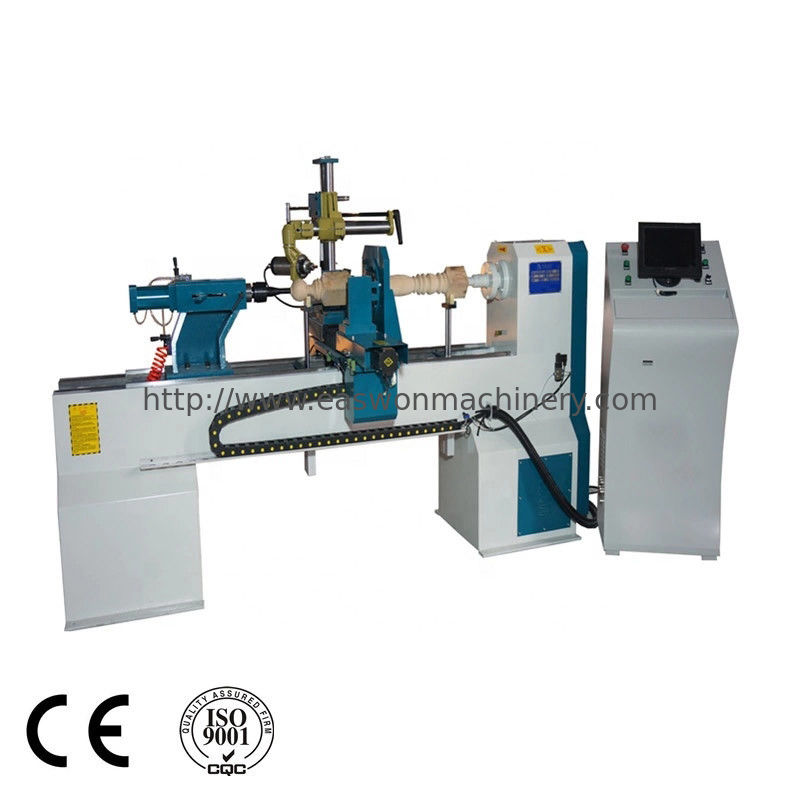

L2500mm Automatic Wood Lathe Machine , Dia400mm Cnc Profile Cutting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | 425K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | 425K | Max. Processing Size: | 2500x400mm |
|---|---|---|---|
| Min. Processing Diameter: | 10mm | Min. Processing Length: | 20mm |
| Spindle Power: | 5.0kw | Accuracy: | 0.001mm |
| Software: | Coreldraw, Artcam, Type3, Ucancam,Caxa, UG, Autocad, Mastercam | ||
| High Light: | L2500mm cnc profile cutting machine,Dia400mm cnc profile cutting machine,Dia400mm automatic wood lathe machine |
||
Product Description
425K CNC double cutter processing length 2500mm diameter 400mm woodworking lathe machine
CNC425K Woodworking lathe can process max. wood length of 2500mm, and wood diameter of 400mm, it is multi-function woodworking lathe: turning + engraving + slot + twist. The control system can be CNC, PC+12''LCD or DSP as per client's requirement. The drawing can be designed by softwares like Coreldraw, Artcam, Type3, Ucancam, Caxa, UG, Autocad, Mastercam etc. CNC425K woodworking lathe is widely used for producing various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc
CNC425K Woodworking lathe specification:
| Model | CNC315S/K/W | CNC415S/K/W | CNC425S/K/W |
| Max. processing size | 1500x300mm | 1500X400mm | 2500x400mm |
| Min. processing diameter | 10mm | 10mm | 10mm |
| Min. processing length | 20mm | 20mm | 20mm |
| Quantity of spindle | 1 | 1 | 1 |
| Spindle power | 4kw | 4kw | 5kw |
| Power | CVT | CVT | CVT |
| Quantity of cutter | 2 | 2 | 2 |
| Max. feeding speed | 35mm/s | 35mm/s | 35mm/s |
| Spindle speed | 3500rpm | 3500rpm | 3500rpm |
| Accuracy | 0.001mm | 0.001mm | 0.001mm |
| Support command | G code | G code | G code |
| Control system | CNC, PC+12’’LCD or DSP | CNC, PC+12’’LCD or DSP | CNC, PC+12’’LCD or DSP |
| Software | Coreldraw, Artcam, Type3, Ucancam,Caxa, UG, Autocad, Mastercam | ||
| Overall dimension | 2750x1200x1300mm | 2750x1300x1400mm | 3750x1300x1400mm |
| Net weight | 1500kg | 1500kg | 2000kg |
S series: double turning tools wood turning lathe
K series: multifunction woodworking machine, turning + engraving + slot + twist
W series: multifunction woodworking machine, turning + engraving + slot + twist + carving plane
K series function:
 |
|
|
| Slot | Rotary engraving | Hollow |
|
|
|
| Helix | Turning | Line engraving |
CNC425K Woodworking lathe machine details:
|
|
|
|
Optional part:
(1). Dust collect, which is used to collect the wood exhaust.
(2). Φ160 mm Four-Jaw Chuck for large sizes timber or barrel shape turning.
Consumable parts:
We suggest customers buy more consumable parts for future use.
(1). Tool. This machine use white steel tool. Customers could change the tools easily.
(2). Bearing. Customers could change the bearing easily.
(3). Centre rest bushing with 5cm and 6cm square timber.if have other sizes,please inform inadvance.
Main Features:
1) Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the problem of materials’ vibration.
2)The machine has 2 cutters (The Rough turning cutter and finish turning cutter worksynchronously with layered process) and can improve the efficiency and workpiece surface quality.
3) Spindle: CNC lathe is single spindle with two pcs cutter or one pc cutter, single spindle could configure chuck, two cutters could do rough turning and finish turning at the same time for high efficiency and surface quality.
4)Linear square rails,ballscrews,and some electronic components are high precision and durable.
5) Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.
6) Feeding part:Taiwan CSK high quality straight line sliding rails and TBI precise ball screw, control the linear error effectively.
7) High Class frequency converter with high stability
8) It is heavyduty and heavy weight with good stability,avoid shaking when the spindle rotates fast or the big sizes workpiece process,
and the main spindle speed can be adjusted through the frequency converter.
9) Easy operation, we can draw by Coredraw,Artcam,autoCAD and other softwares, and the control directly by the CNC cabinet computer (Industrial PC configuration) or transfer the files to machine by a USB (DSP handle configuration).
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
