Eage T3mm 20m/Min Woodworking Edge Banding Machine For Furniture
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | FZ-360DJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | FZ-360DJ | Panel Thickness: | 10-60mm |
|---|---|---|---|
| Banding Belt Thickness: | 0.4-3mm | Min. Panel Width: | 80mm |
| Motor Power: | 11.5kw | Condition: | New |
| Warranty: | 1 Year | ||
| High Light: | Eage T3mm Woodworking Edge Banding Machine,Eage T3mm furniture manufacturing machines,20m/Min furniture manufacturing machines |
||
Product Description

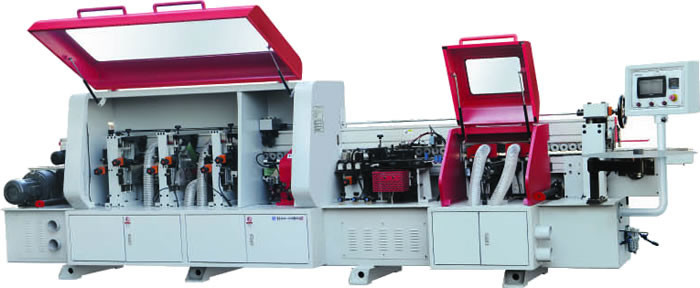

FZ-360DJ Auto Edge Banding Machine(pre-milling) for furniture making
1. Function of edge bander: buffing, scraping, fine trimming, rough trimming, end trimming, gluing, pre-milling.
2. Application: used for edge banding for MDF, particle board, plywood, blockboard, solid panel etc.
|
|
|
| Buffing | End trimming | Gluing |
|
|
|
| Rough and fine trimming | Pre-milling | Scraping |
| Main technical parameter | |
| Model | FZ-360DJ |
| Motor power | 11.5kw |
| Working voltage | AC380V 50HZ, 3PH |
| Overall size | 6100x1100x1600mm |
| Feeding speed | 12-20m/min |
| Panel thickness | 10-60mm |
| Edge thickness | 0.4mm-3mm |
| Panel width | ≥80mm |
| Working air pressure | 0.8mpa |
| Weight | 2500kg |
| Configuration form | |
| Pre-milling | ● |
| Gluing | ● |
| End trimming | ● |
| Rough trimming | ● |
| Fine trimming | ● |
| Profiling unit | / |
| Scraping | ● |
| Buffing | ● |
| Grooving | / |
