Product Details:

Place of Origin: China
Brand Name: Easwon
Certification: CE
Model Number: MJ1412-32

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: wooden case
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Model: MJ1412-32 Min. Sawing Length: 550mm/360mm
Max. Sawing Width(open File): 320mm Max. Sawing Thickness: 115mm
Saw Blade Size: 250-355/405mm X 70mm Main Motor Power: 45kw
Feeding Motor Power: 4kw Feeding Speed: 3.3-16.5m/min
Condition: New Warranty: 1 Year
High Light:

Multiple Solid Wood Panel Rip Saw

,

360mm Rip Saw Machine

,

Multiple Woodworking Band Saw Machine

Product Description

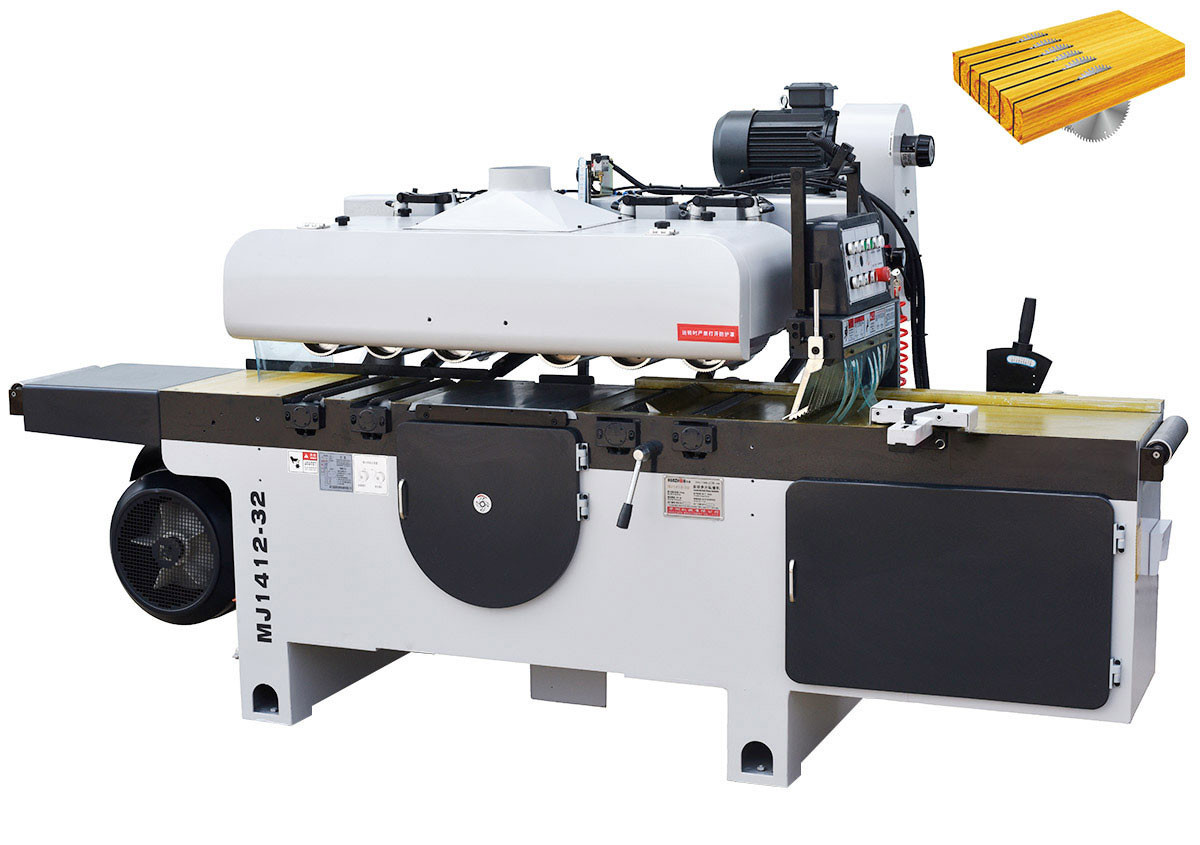

MJ1412-32 Automatic Multiple Rip Saw

MJ1412-32 can professionally solve the vertical multi-blade sawing of wood with a processing width of 320mm or less and a processing thickness of 120mm or less Mainly applicable industries: construction sites, furniture, packing boxes, etc..

Multiple rip saw is widely used for processing solid wood panel, MDF, particle board, plywood etc with high efficient and precision.



MJ1412-32 Multiple rip saw features:

  1. This machine is a change of material, wood, wood core board is special, according to a preset size feed can saw cutting out much sticks, use of feeding wheel feed, and the upper and lower feed wheel, synchronous power feed.

  2. Feeding wheel on a total of six groups, the wood of the pressure is controlled by a pressure cylinder material, visual wood hardness, free adjustment.

  3. Adopt frequency control of motor speed, feeding speed can be visualized feeding speed, easier to control the speed.
  4. The feed wheel feed, better than caterpillar feeding economic security, control and maintenance, material use pneumatic type, so even if the wood thickness change is big, also fixed pressure of material, material thickness range of the pressure is big, up to 35 mm.
  5. Electric adjustment of feeding wheel frame and lifting and blade spindle movements, easy to operate.
  6. Saw blade spindle can be dropped from saw blade saw blade working mesa, replacing saw blades.
  7. Spindle use special alloy steel material, after heat treatment and precision grinding process for many times.
  8. High precision bearing spindle all USES large specification, load resistance, long service life.
  9. Security group, up and down and side safety barrier, protect the safety of operating personnel.



Specifications:



Technical specification Unit MJ1435F
Saw blade size mm Ø250-Ø355 x Ø70
Min. sawing length(intermittent/continuous) mm 550/360
Max. sawing thickness mm 100
Max. sawing width mm 300
Total power kw 26.10
Main spindle speed r/min 3600
Main motor power kw 22
Feeding motor power kw 3
Elevating power of feeding mount kw 0.55
Elevating power of saw mount kw 0.55
Feeding speed m/min 6-35
Dust outlet diameter mm Ø150
Overall dimension mm 2670x1200x1500
Net weight kg 1700





Multiple Rip saw details:



550mm / 360mm Automatic Multiple Rip Saw Machine For Solid Wood Panel Processing 0 550mm / 360mm Automatic Multiple Rip Saw Machine For Solid Wood Panel Processing 1
Upper 4pcs and lower 2pcs driving wheel for feeding strong and powerfully The high-torque reduction worm gear box is equipped with universal joints for the smoother feeding.
550mm / 360mm Automatic Multiple Rip Saw Machine For Solid Wood Panel Processing 2 550mm / 360mm Automatic Multiple Rip Saw Machine For Solid Wood Panel Processing 3
Up and down multiple anti-rebound devices, effectively prevent the wood from rebounding and hurting people The feeding speed can be adjusted in multiple gears, and the suitable speed can be selected according to different requirements.
550mm / 360mm Automatic Multiple Rip Saw Machine For Solid Wood Panel Processing 4 550mm / 360mm Automatic Multiple Rip Saw Machine For Solid Wood Panel Processing 5
Equipped with laser marking device, wood sawing position is accurately aligned. The automatic oil supply pump automatically supplies oil to the key parts of the transmission
550mm / 360mm Automatic Multiple Rip Saw Machine For Solid Wood Panel Processing 6 550mm / 360mm Automatic Multiple Rip Saw Machine For Solid Wood Panel Processing 7
The mist spray device extends the service life of the saw blade and minimizes the amount of water received by the wood. Equipped with spindle sleeve, easy and quick to disassemble the saw blade





Package and shipping:



The rip saw is packed by plywood case, which is suitable for FCL and LCL shipping.



After sales services:



1. Warranty: 1 year

2. Lifetime upgrades and consulting services

3. 24-hour servic hot line for consulting and solving the problems

4. Provide product design and solution within 24 hours

5. Supply operational manual and maintance manual in English.
