Wood L10m Horizontal Band Sawmill

Wood L10m Horizontal Band Sawmill

Product Details:

Place of Origin: China
Brand Name: Easwon
Certification: CE
Model Number: MJ1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Model: MJ1500 Max. Sawing Width: 1500mm
Max. Sawing Height: 1200mm Max. Sawing Thickness: 350mm
Power: 37kw Sawing Wood Length: 10m
Condition: New Warranty: 1 Year
High Light:

sawing w1500mm Horizontal Band Sawmill

,

Wood L10m Horizontal Band Sawmill

Product Description

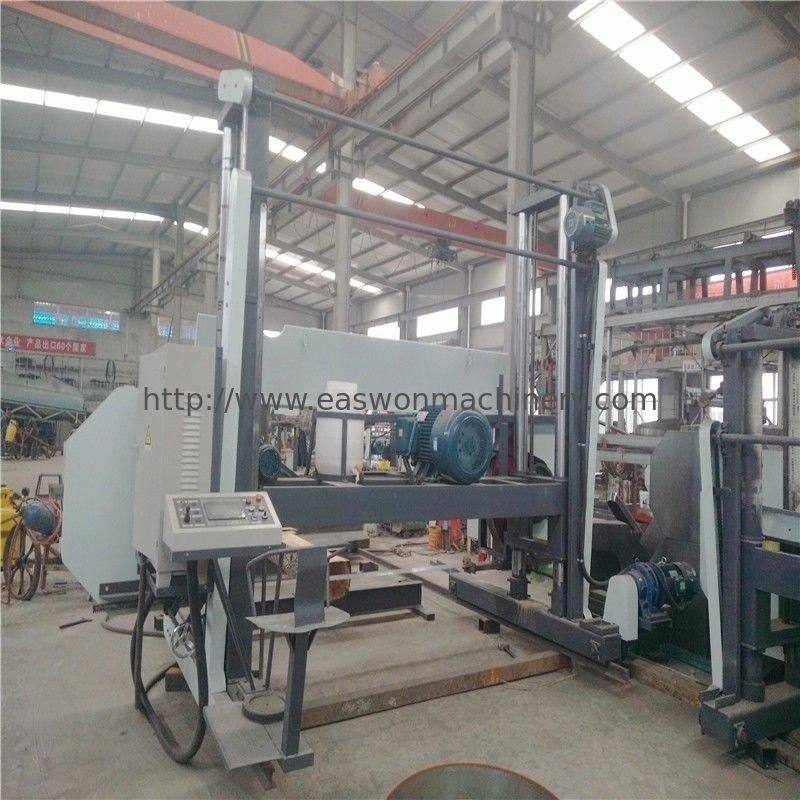

MJ1500 heavy duty horizontal band sawmill



Our large horizontal band sawmill is controlled cutting thickness by Taiwan FATEK PLC touch screen, and variable frequency forward/backward. Horizontal band sawmill can saw max. log's diameter of 2500mm, especially for hardwood like rosewood, santos rosewood, wenge etc. At present, our horizontal band sawmill is mainly exporting to Congo, Cabon, Angola, Fiji, Suriname etc. It is widely used in lumber factory, furniture factory, forestry farm etc. Horizontal band sawmill can be used for cutting round logs, square shape and other raw materials as well as various shape wood.



Horizontal band sawmill specification:



Model Unit MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width mm 1200 1500 2000 2500
Max. sawing height mm 1100 1200 1700 2200
Saw wheel diameter mm 960 1000 1070 1070
Max. sawing thickness mm 350 350 400 400
Sawing wood length mm 10000 10000 10000 12000
Saw blade size mm 1.25x150x7700 1.25x150x8600 1.25x150x9300 1.25x150x10500
Motor power kw 30 37 45 55
Weight kg 3800 4500 5000 5500

Optional 1: the power can be changed to 60HP or 100HP 4-cylinder diesel engine

Optional 2: Rail frame can be added to easy move in different places.





Horizontal band sawmill show:

Wood L10m Horizontal Band Sawmill 0

Wood L10m Horizontal Band Sawmill 1


Horizontal band sawmill features:



Wood L10m Horizontal Band Sawmill 2 The power can be also 60HP or 100HP 4-cylinder diesel engine. Wood L10m Horizontal Band Sawmill 3 High quality SKF Bearings from Sweden
Wood L10m Horizontal Band Sawmill 4

4 stand columns and precision

screw to make sure the saw

wheel's up and down is stable

and accurate

Wood L10m Horizontal Band Sawmill 5

Turning, cylindrical grinding, chroming makes sure the stand columns is smooth and precision.

Wear resistance copper sliding bush

Wood L10m Horizontal Band Sawmill 6 The band sawmill is using Taiwan FATEK PLC central touch screen panel, circuitry concentrating on the control panel to control the sawing thickness digitally, it will be more accurate. Wood L10m Horizontal Band Sawmill 7 Central saw wheel design makes the saw wheel running stable, extend the working life, and reduce the probability of band saw blade break down.
Wood L10m Horizontal Band Sawmill 8 Counterweight steel makes the blade more flexible and not easy to break. Wood L10m Horizontal Band Sawmill 9 Variable frequency speed adjustable forward/backword, the forward speed is 1-20m/min, which is high efficient.




Finished product:



Wood L10m Horizontal Band Sawmill 10 Wood L10m Horizontal Band Sawmill 11
Wood L10m Horizontal Band Sawmill 12 Wood L10m Horizontal Band Sawmill 13





Packing and shipping



Generally, the horizontal band sawmill is packed by plastic film, and loaded into 20ft container.



Wood L10m Horizontal Band Sawmill 14 Wood L10m Horizontal Band Sawmill 15 Wood L10m Horizontal Band Sawmill 16



Horizontal Band sawmill customer show:



Wood L10m Horizontal Band Sawmill 17 Wood L10m Horizontal Band Sawmill 18 Wood L10m Horizontal Band Sawmill 19
Angola Ghana Congo
Wood L10m Horizontal Band Sawmill 20 Wood L10m Horizontal Band Sawmill 21 Wood L10m Horizontal Band Sawmill 22
Canada Holland Angola



After sales services:



1. Warranty: 1 year

2. Lifetime upgrades and consulting services

3. 24-hour servic hot line for consulting and solving the problems

4. Provide product design and solution within 24 hours
