H130mm Woodworking Milling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | TX5113 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | TX5113 | Max. Milling Height: | 130mm |
|---|---|---|---|
| Cutting Circle Diameter: | 40mm | Max. Hole Size: | 260x50mm |
| Motor Power: | 4kw | Condition: | New |
| Warranty: | 1 Year | ||
| Highlight: | 130mm Woodworking Milling Machine,4kw Woodworking Milling Machine |
||
Product Description

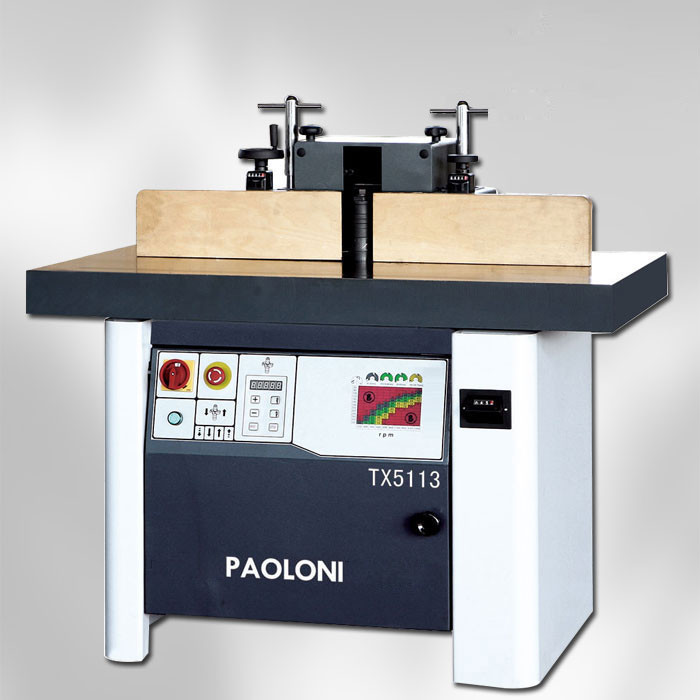

TX5113 Digital Display Electric Axis Vertical Single Spindle Miller
| Technical specification | Unit | TX5113 |
| Main spindle speed | r/min | 5000-10000(speed per 1000 as a regulator) |
| Cutting circle diameter | mm | Ø40(Ø50 optional) |
| Max. milling height | mm | 130 |
| Min. copy radius | mm | R45 |
| Table size | mm | 1200x700 |
| Max. hole size | mm | Ø260x50 |
| Working table height | mm | 820 |
| Motor power | kw | 4 |
| Overall dimension | mm | 1200x780x1160 |
| Net weight | kg | 320 |
Want to Know more details about this product
