Product Details:

Place of Origin: China
Brand Name: Easwon
Certification: CE
Model Number: FZ-NP330

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: wooden case
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Model: FZ-NP330 Max. Sawing Length: 3200mm
Max. Sawing Thickness: 90mm Main Saw Blade Size: 400mm X 30mm
Main Saw Spindle Speed: 4800r/min Total Motor Power: 19kw
Feeding Motor Power: 1.5kw Feeding Speed: 42m/min
Condition: New Warranty: 1 Year

Product Description

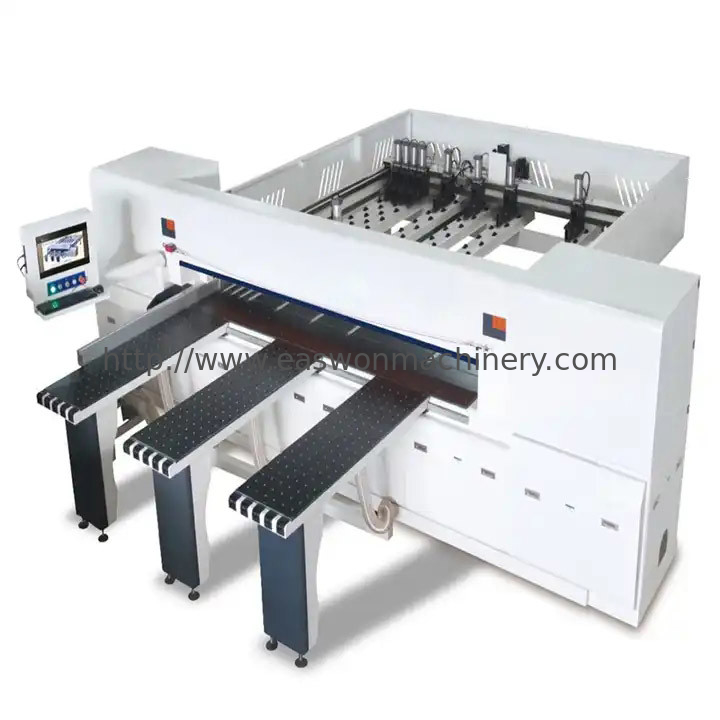

FZ-NP330 Computer beam saw/CNC panel saw

FZ-NP330 can be widely used for processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness. More and more panel furniture maker choose the computer beam saw for their automatic production line.



Computer beam saw features:



1. Floating effect of the floating platform is caused by the pressure, to facilitate feeding, especially suitable for the heavy plate, and can avoid the surface damage.



2. The machine adopts imported magnetic feet as feed positioning detection control, precise positioning detection size effectively, improve the cutting precision.



3. Advanced reasonable electrical control design, equipment can be realized automatically return, to ensure the safety of the processing efficiency.



4. Using precision linear slide rail, strong stability, high precision.



5. Adopt Taiwan precision gear and rack, durable.



6.High quality Japanese Mitsubishi CPU control main board.



7. PC Control System



8. Sheet metal clip is expected to adopt cylinder and feed forward through the roller bed surface, feeding and accurate, and ensure that saw cutting precision, and will not hurt the workpiece surface.



9. Automatic sheets-feeder with Japan's Mitsubishi high-performance servo motor drive, big torque, accurate positioning and long service life.



10.Speed of saw carriage can reach 5-100m/min



11.Speed adjustable for forward moving of saw carriage.



Advantage:

1. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.



2. International brands electrical parts are applied for good stability.



3. Spare parts are thick and solid to maintain high precision, high stability and reliability.



4. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiency and protect operators.



5.Mass production is several times more efficient than common machinery and saves time and power.



Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 0

Specifications:



Technical specification Unit FZ-NP330
Max. sawing length mm 3200
Max. sawing thickness mm 90
Main saw blade diameter mm Ø400
Main spindle diameter mm Ø30
Main saw blade spindle speed r/min 4800
Scoring saw blade diameter mm Ø180
Scoring saw spindle diameter mm Ø30
Scoring saw blade spinlde speed r/min 6500
Auto feeding speed m/min 42
Saw back speed m/min 100
Saw forward speed m/min 0-80
Main saw motor kw 13
Scoring saw motor kw 2.2
Saw servo motor kw 1.5
feeding servo motor kw 1.5
Total motor power kw 19
Pressure Mpa 6-8
Overall dimension mm 5300x5600x1800
Net weight kg 4500





Computuer beam saw details:



Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 1 Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 2

Industrial PC control System, with printer

1) Easy operation, safety & reliable.

2) Which has complete operating hints and troubleshooting guide functions.

3) It’s cutting plan can edit manually; can simulate or execute cutting plans.

4) Can compatible with bar code manage software or factory automation software

Manipulator automatic feeding device

The clamping hand adopts anti-collision rubber head to protect the plate.

Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 3 Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 4

Servo motor drive using Taiwan imported KH grinding grade gear, rack



Advantages: high hardness, high precision, wear resistance, long - term guarantee accuracy and so on
Imported high precision reducer, automatic oiling system
Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 5 Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 6

Big and small saws start independently and lift vertically.

Adopting precision circular guide rail
Saw car drive using rack and pinion, servo motor traction
Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 7 Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 8
Guide rail device: Taiwan imported high precision circular guide rail parallel double suspension, more stable , durable and wear-resistant, guarantee sawing precision and no deformation for long-term The table adopts air floating bead, 3.0kw high pressure fan, the workpiece is easy to move
Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 9 Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 10
The main saw uses 13kw motor Delta servo, Delta PLC, Korea LS electrical, contactor
Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 11 Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 12

The feed port adopts manual wire pulling and emergency stopping device. Keep workers more safer

Hard chrome plated steel table panel
Automatic computer cnc beam saw machines panel saw reciprocating beam cutting saw 13

Option : side alignment

Servo side alignent, precise positioning





Package and shipping:



We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.



Guarantee:


The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.


Technical support:


Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.


After sales services:


Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
