8pcs Discs Small Scale Agricultural Machinery Working Width 880-1760mm Rotary Disc Plough
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | ISO |
| Model Number: | 1LYQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case or iron frame |
| Delivery Time: | 5-10 working days |
| Supply Ability: | 500 set per month |
|
Detail Information |
|||
| Working Width: | 880-1760mm | Working Depth: | 200-240mm |
|---|---|---|---|
| No. Of Discs: | 4-8pcs | Matched Power: | 18-70hp |
| High Light: | w1760mm Small Scale Agricultural Machinery,w1760mm rotary disc plough,8pcs rotary disc plough |
||
Product Description

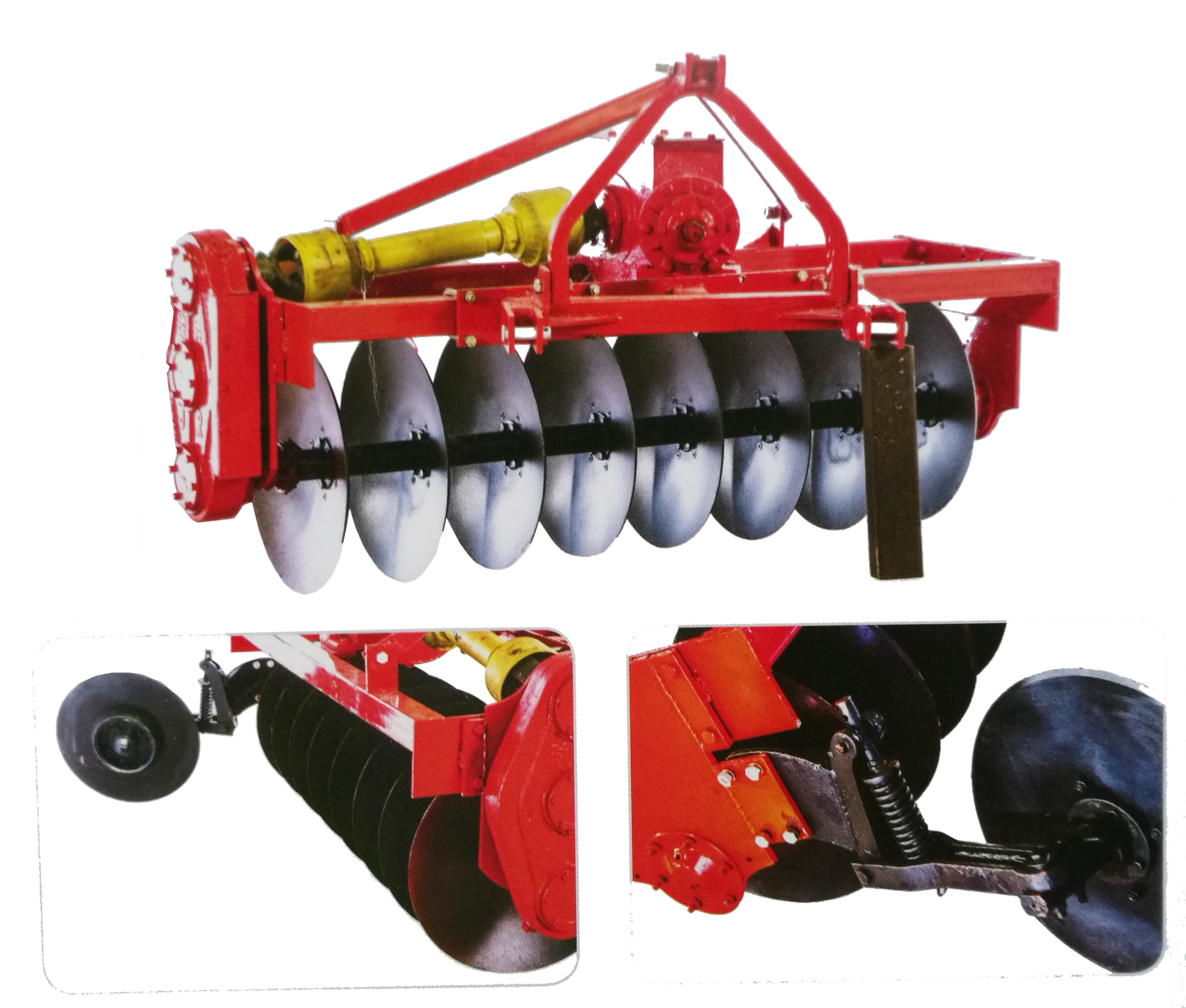

1LYQ series european standard rotary-driven disc plough, working width 880-1760mm
1LYQ rotary-driven disc plough is mounted on a tractor through a rear mounted three-point linkage.
During the working process of the implement, the motive power is transferred to the gear case of the disc plow through a back power takeoff shaft (PTO) of the tractor to drive the discs to rotate. The driven disc plow, which is mainly suitable for paddy field plowing, has the advantages of no weed winding, high operational quality and high working efficiency.
| Model | Unit | 1LYQ-422 | 1LYQ-522 | 1LYQ-622 | 1LYQ-722 | 1LYQ-822 |
| Working width | mm | 880 | 1100 | 1320 | 1540 | 1760 |
| Working depth | mm | 200-240 | 200-240 | 200-240 | 200-240 | 200-240 |
| No. of disc | pcs | 4 | 5 | 6 | 7 | 8 |
| Rotating speed of input shaft | r/min | 540/720 | 540/720 | 540/720 | 540/720 | 540/720 |
| Rotating speed of outer shaft | r/min | 90-120 | 90-120 | 90-120 | 90-120 | 90-120 |
| Matched power | hp | 18-22 | 25-30 | 40-50 | 50-60 | 60-70 |
| Overall weight | kg | 240 | 276 | 321 | 357 | 393 |
