Dia10mm Cnc Woodworking Lathe Machine L20mm 315K Model
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | CE |
| Model Number: | 351K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model: | 315K | Max. Processing Size: | 1500x300mm |
|---|---|---|---|
| Min. Processing Diameter: | 10mm | Min. Processing Length: | 20mm |
| Spindle Power: | 4kw | Accuracy: | 0.001mm |
| Software: | Coreldraw, Artcam, Type3, Ucancam,Caxa, UG, Autocad, Mastercam | ||
| High Light: | L20mm Woodworking Lathe Machine,L20mm cnc wood lathe machine,Dia10mm cnc wood lathe machine |
||
Product Description

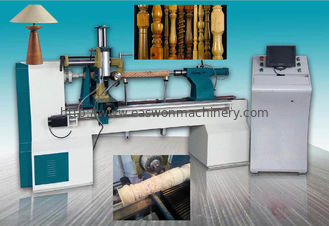

315K CNC woodworking lathe machine
Usage: Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column,
Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat,
car wooden furniture, children' s bed column, etc
| Model | CNC315K |
| Max. processing size | 1500x300mm |
| Min. processing diameter | 10mm |
| Min. processing length | 20mm |
| Quantity of spindle | 1 |
| Spindle power | 4kw |
| Power | CVT |
| Quantity of cutter | 2 |
| Max. feeding speed | 35mm/s |
| Accuracy | 0.001mm |
| Support command | G code |
| Control system | CNC, PC+12’’LCD or DSP |
| Software | Coreldraw, Artcam, Type3, Ucancam,Caxa, UG, Autocad, Mastercam |
| Overall dimension | 2750x1200x1300mm |
| Net weight | 1500kg |
| Package size | 2820x1360x1920mm |
| Gross weight | 1800kg |
Optional part:
(1). Dust collect, which is used to collect the wood exhaust.
(2). Φ160 mm Four-Jaw Chuck for large sizes timber or barrel shape turning.
Consumable parts:
We suggest customers buy more consumable parts for future use.
(1). Tool. This machine use white steel tool. Customers could change the tools easily.
(2). Bearing. Customers could change the bearing easily.
(3). Centre rest bushing with 5cm and 6cm square timber.if have other sizes,please inform inadvance.
Main Features:
1) Driving system:Adopt frequency conversion speed regulation system,
could adjust the turning speed at any time to solve the problem of materials’ vibration.
2)The machine has 2 cutters (The Rough turning cutter and finish turning cutter worksynchronously with layered process) and
so that improve the efficiency and workpiece surface quality.
3) Spindle: we could configure single spindle with two pcs cutter or one pc cutter, single spindle could configure chuck,
two cutters could do rough turning and finish turning at the same time for high efficiency and surface quality. (Double spindles has stop to produce again.
In fact,the modle is not good to the turning the wood products, it is very slow when turning the big sizes column,
and there have many defects at design to the Double Spindle lathe, Such as the Sanding, Centering, Programming,Upper Spindle Structural Stability etc)
4)Linear square rails,ballscrews,and some electronic components are imported, high precision and durable.
5) Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.
6) Feeding part:Taiwan CSK high quality straight line sliding rails and TBI precise ball screw, control the linear error effectively.
7) High Class frequency converter with high stability
8) It is heavyduty and heavy weight with good stability,avoid shaking when the spindle rotates fast or the big sizes workpiece process,
and the main spindle speed can be adjusted through the frequency converter.
9)Easy operation, we can draw by Coredraw,Artcam,autoCAD and other softwares, and the control directly
by the CNC cabinet computer (Industrial PC configuration) ortransfer the files to machine by a USB (DSP handle configuration).
