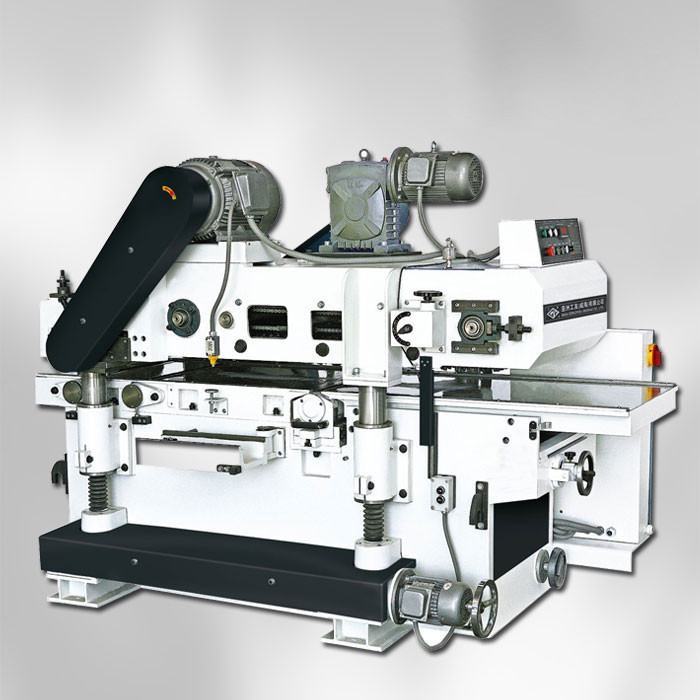

• Auto Woodworking Thicknesser Machine MB204E MB206E Double Sided Wood Planer
Auto Woodworking Thicknesser Machine MB204E MB206E Double Sided Wood Planer

Auto Woodworking Thicknesser Machine MB204E MB206E Double Sided Wood Planer

Product Details:

Place of Origin: China
Brand Name: Easwon
Certification: CE
Model Number: MB204E

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Model: MB204E Max. Planing Width: 400mm
Planing Thickness: 10-120mm Max. Top Cutter Planing Depth: 7mm
Min. Bottom Cutter Planing Depth: 5mm Bottom Cutter Motor Power: 7.5kw
Top Cutter Motor Power: 4kw Warranty: 1 Year
Condition: New
High Light:

MB204E Woodworking Thicknesser Machine

,

MB204E double sided wood planer

,

MB206E double sided wood planer

Product Description

MB204E MB206E Auto Double Sides Planer





Technical specification Unit MB204E MB206E
Max.planing width mm 400 630
Max. planing thickness mm 120 150
Min. planing thickness mm 10 10
Min. planing length mm 300 300
Feeding speed m/min 5-20 6-18
Max. top cutter planing depth mm 7 7
Max. bottom cutter planing depth mm 5 5
Spindle speed r/min 5000 5000
Blade number pcs 4 4
Planing spindle diameter mm Ø112 Ø112
Bottom horizontal cutter motor power kw 7.5 11
Top horizontal cutter motor power kw 4 7.5
Feeding motor power kw 2.2 3
Lifting motor of feeding mechanism kw 0.75 0.75
Overall dimension mm 2500x1210x1630 2500x1440x1685
Net weight kg 2400 3200
